MASWELL introduces three types of adhesive 4G antennas AN_GSM_107 (824~894/1710~2170/2400~2500 MHz), AN_GSM_824 (824~960/1710~2170 MHz), AN_GSM_108L (698~960/1710~ 2690MHz), with small size, and its suitable for small size system and IOT smart three meter application.
AN_GSM_107 is a short patch 4G antenna with peak gain of 2.0dBi. AN_GSM_824 is a small size patch antenna with gain of 3dBi. AN_GSM_108L is a small size 4G/3G/GSM IoT antenna, its main feature is that it can accept all 4G/3G/GSM signal bands, and its small size and good waterproof performance make it extremely suitable for IoT sensors and smart water meters. It is suitable for IOT sensor and smart water meter as signal transmission antenna.
These three antennas are all adopt paste mounting method, small size, easy to install and easy to integrate.

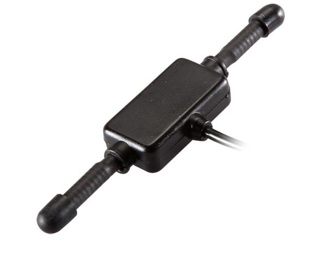

Figure 1. AN_GSM_107 Product Diagram

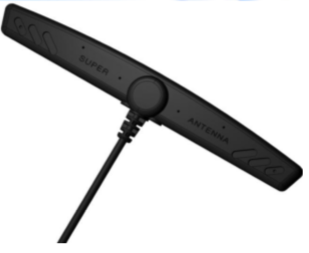

Figure 2. AN_GSM_824 Product Diagram
Figure 3. AN_GSM_108L Product Diagram
Product Features:
AN_GSM_107：
| Frequency Range |
824~894/1710~2170/2400~2500MHz |
| Polarization |
Linear |
| Gain |
2dBi（Zenith） |
| V.S.W.R |
＜2.0 |
| Impedance |
50Ω |
| PCB size |
62.2 * 22 *0.8mm |
AN_GSM_824：
| Frequency Range |
824~960/1710~2170MHz |
| Polarization |
Linear |
| Gain |
3dBi（Zenith） |
| V.S.W.R |
＜2.0 |
| Impedance |
50Ω |
AN_GSM_108L：
| Frequency Range |
698~960/1710~2690MHz |
| Polarization |
Linear |
| Gain |
2.0dBi（Zenith） |
| V.S.W.R |
＜2.5 |
| Impedance |
50Ω |
| PCB size |
115 * 9 *0.8mm |
Product Applications:
Signal coverage and terminal reception
IoT devices
AR/VR devices
CPE devices
Smart meters, smart water meters
Smart Billboard
