MASWELL Hardcore Car Mounted GPS Antenna with Anfilo Waterproof Fakra Connector
Release time：2021/10/22
MASWELL introduces the hardcore nut mount positioning antenna AN_GPS_A003 T BOX with a center frequency of 1575.42±3MHz and a peak gain of 2dBic. The antenna base is flat and the nut mount installation makes it firmly installed and not easy to fall off. The antenna is a positioning antenna specially developed by Maswell design team for truck vehicle scenario, the antenna model adopts Anfilo waterproof Fakra connector, the cable is RG174 with nylon armor.
The product adopts ABS antenna cover and nut mounting method, which is strong and durable and can prolong the service life and guarantee the stability of antenna performance, suitable for vehicle application scenarios.
Figure 1. Product Diagram

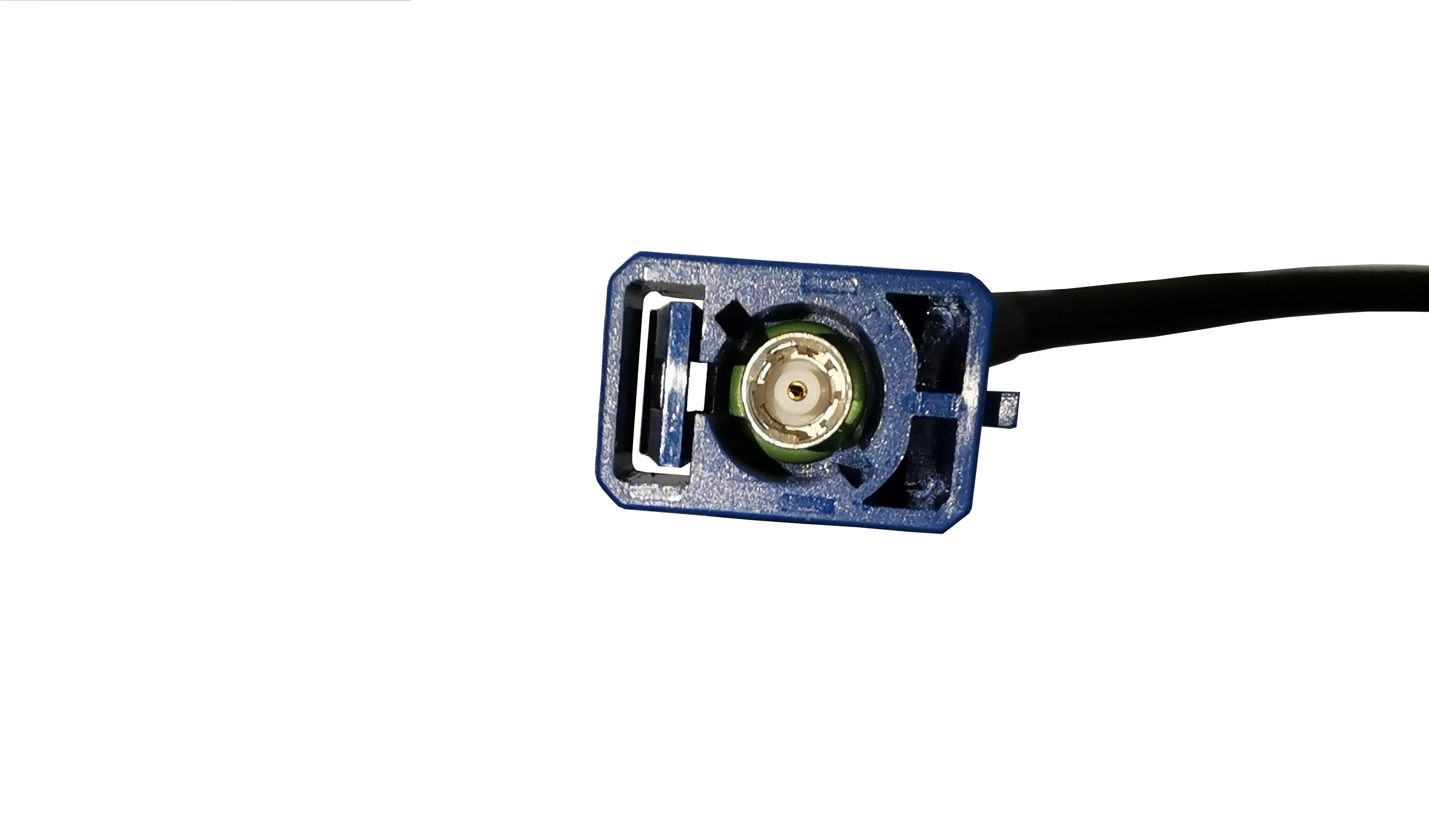

Figure 2. Connector
Features of AN_GPS_A003 T BOX：
Center Frequency
1575.42±3MHz
Bandwidth
CF±5MHz
Polarization
RHCP
Gain
2dBic（Zenith）
V.S.W.R
＜1.5
Impedance
50Ω
Axis ratio
3dB（Zenith）
Dimension
Φ46.6*14.5mm
Application of AN_GPS_A003 T BOX:
Vehicles
Instrumentation
Handheld equipment
Outdoor equipment
Industrial Control
Instrument Upgrade
