MASWELL GPS+GSM combination antenna Two-in-one

Release time：2021/10/26

MASWELL launched the GPS+4G combination antenna AN_GPS_GSM_010, single antenna can meet the needs of positioning and communication at the same time, easy to install with the paste installation method, simplify the installation procedure.
The antenna model is made of ABS antenna cover, which is strong and durable and can prolong the service life of the product and guarantee the stability of the antenna performance.

Figure 1. Product Diagram

Product features of AN_GPS_GSM_010：
GPS Antenna：

Center Frequency	1575.42±3MHz
Bandwidth	CF±5MHz
Polarization	RHCP
Gain	2dBic（Zenith）
V.S.W.R	＜1.5
Impedance	50Ω
Axial Ratio	3dB（Zenith）

GSM Antenna：

Frequency Range	824~960MHz/1710~2170MHz
V.S.W.R (min)	＜2.0
Polarization	Linear
Gain	2dBi
Impedance	50Ω

Application of AN_GPS_GSM_010：
Vehicles
Instrumentation
IoT
Industrial Control
Intelligent Charging Pile
Intelligent Three Meters

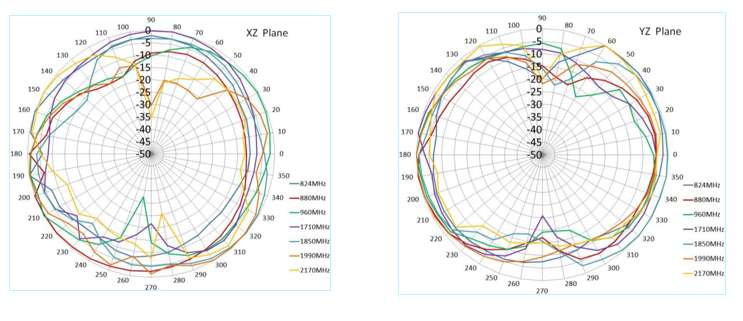

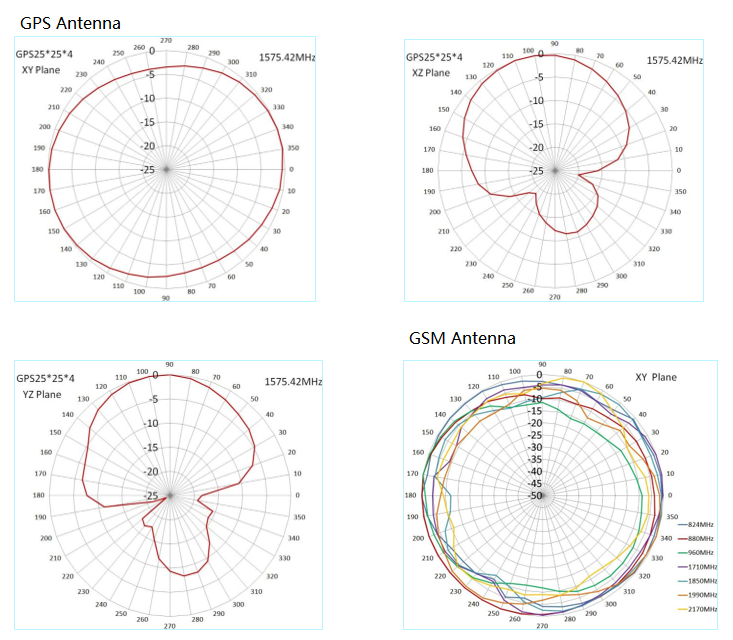

Figure 2. Antenna Radiation Patterns
