MASWELL high gain right angle WiFi antenna AN_W415, Frequency range 2400~2483.5MHz, Gain up to 7dBi
Release time：2021/10/27
MASWELL launched the high gain WiFi antenna AN_W415 in the frequency coverage range of 2400~2483.5MHz, which can achieve a high gain of 7dBi. The antenna model adopts RP-SMA Male connector, and customers can also customize other connectors as needed to meet the cost-effective application requirements of different scenarios.

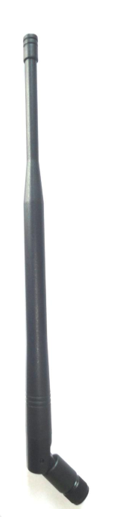

Figure 1. Product Diagram
Features of AN_W415 ：
Frequency Range
2400〜2483.5MHz
Bandwidth
83.5MHz
Polarization
Linear
Gain
7dBi
V.S.W.R
＜2.0
Impedance
50Ω
Connector
RP-SMA Male or others
Application of AN_W415 ：
Indoor CPE Devices
Router Signal Enhancement
IoT
Industrial Control
Instrumentation
Sensors
