The gain of these two products AN_W069 and AN_W413 magnet type round sitting tower antennas from MASWELL can reach 2~3dBi. The magnet mounting method is easy to install and the tower antenna is convenient to use with good signal stability. The customizable connector expands the antenna's application range and provides more choices for consumers. These two products are suitable in size and can be used in many scenarios, and the price is very affordable.

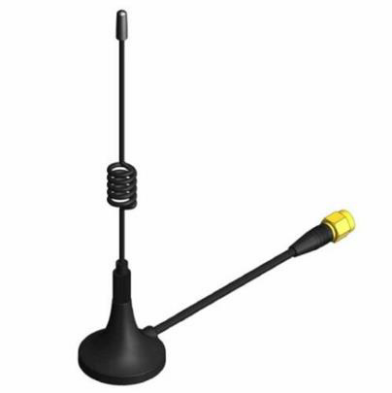

Figure 1. AN_W069
Figure 2. AN_W413
Features of the products ：
Product
Dimension
Frequency Range
Gain
Connector
AN_W069
25.9mm9.5mm
2400~2483.5MHz
2dBi
RP-SMA plug（Customizable）
AN_W413
53.7mm18.6mm
2400~2500MHz
3dBi
RP-SMA plug（Customizable）

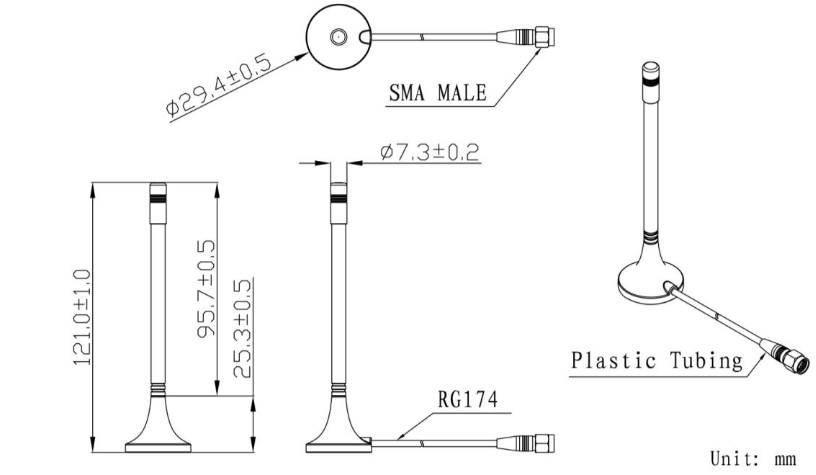

Figure 3. Dimension of AN_W069
Figure 4. Dimension of AN_W413
