| Item | Specifications | ||

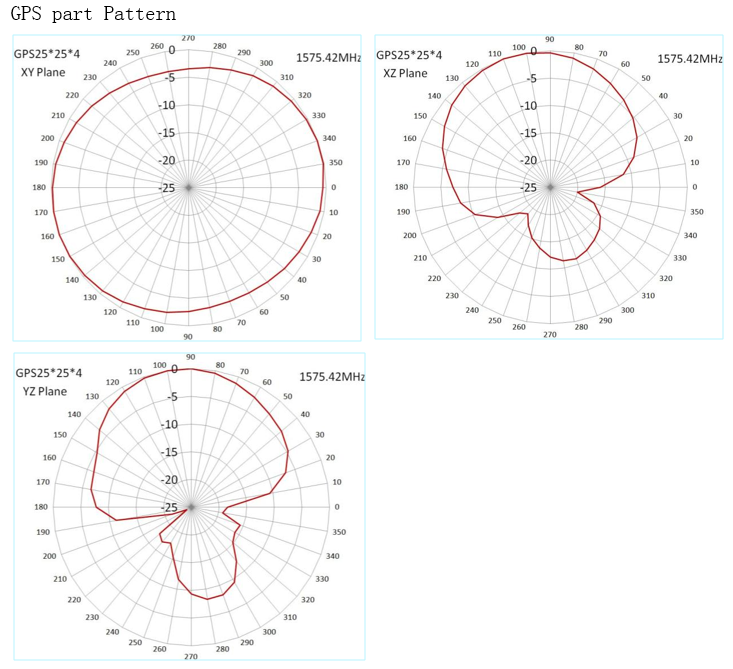

| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±3MHz |
| Band Width | CF±5MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBic（Zenith） | ||
| V.S.W.R | ＜1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB（max） | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | ＜1.5dB | ||
| V.S.W.R | ＜2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | ＜15mA | ||

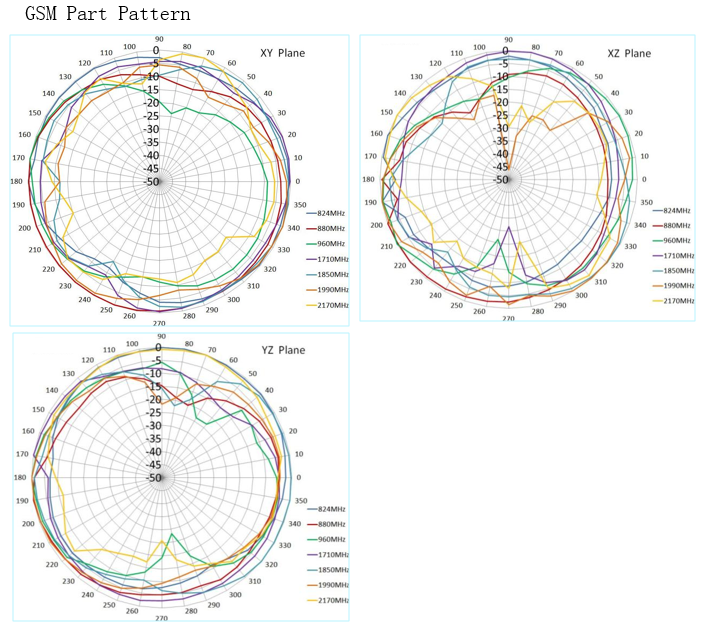

| GSM Antenna | Frequency Range | 698~960MHz/1710~2690MHz | |
| V.S.W.R | ＜2.0 | ||
| Polarization | Linear | ||
| Gain | 2.0dBi | ||
| Impendance | 50Ω | ||

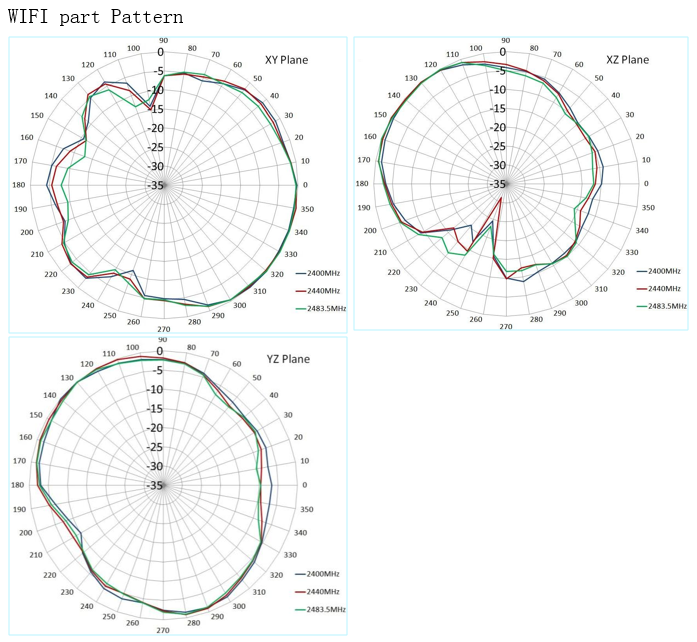

| WIFI Antenna | Frequency Range | 2400~2483.5MHz/4900~5825MHz | |
| Band Width | 83.5MHz/925MHz | ||
| Polarization | Linear | ||
| Gain | 3dBi | ||
| V.S.W.R | <2.0 | ||
| Impendance | 50Ω |
||
| Mechanical | Cable | RG174 | |
| Connector | 4G/GPS: SMA Male WiFi: RP SMA Plug |
||
| Material | ABS | ||
| Mounting Method | Screw | ||
