| Item | Specifications | |
| Antenna1: 5G | Frequency Range | 700-3800MHz |
| Polarization | Linear | |
| Gain | 4dBi （typically） | |
| V.S.W.R | <3 | |
| Efficiency | >50% | |
| Antenna 2: 5G | Frequency Range | 700-3800MHz |
| Polarization | Linear | |
| Gain | 4dBi （typically） | |
| V.S.W.R | <3 | |
| Efficiency | >50% | |
| Antenna 3: 5G | Frequency Range | 700-3800MHz |
| Polarization | Linear | |
| Gain | 4dBi （typically） | |
| V.S.W.R | <3 | |
| Efficiency | >50% | |
| Antenna 4: 5G | Frequency Range | 700-3800MHz |
| Polarization | Linear | |
| Gain | 4dBi （typically） | |
| V.S.W.R | <3 | |
| Efficiency | >50% | |
| Item | Specifications | |
| Antenna 5： GNSS | Frequency Range | GPS L1 / L2 / L5 GLNASS G1/G2/G3 COMPASS B1 / B2 / B3 Galileo E1 / L1 / E2 / E5a / E5b / E6 |
| Polarization | RHCP | |
| Axial Ratio | ≤3dB | |
| V.S.W.R | ≤1.5 | |
| Peak Gain | ≥5.5dBi | |
| Impedance | 50Ω | |
| Phase Center Offset | ±2mm | |
| Horizontal Orientation | 360˚ | |
| Antenna 6and Antenna 7：WiFi | Frequency Range |
2400~2483.5MHz/4900~5925MHz |
| V.S.W.R |
<2.5 |
|
| Polarization | Linear | |
| Gain |
4dBi （typically） |
|
| Impedance | 50Ω | |

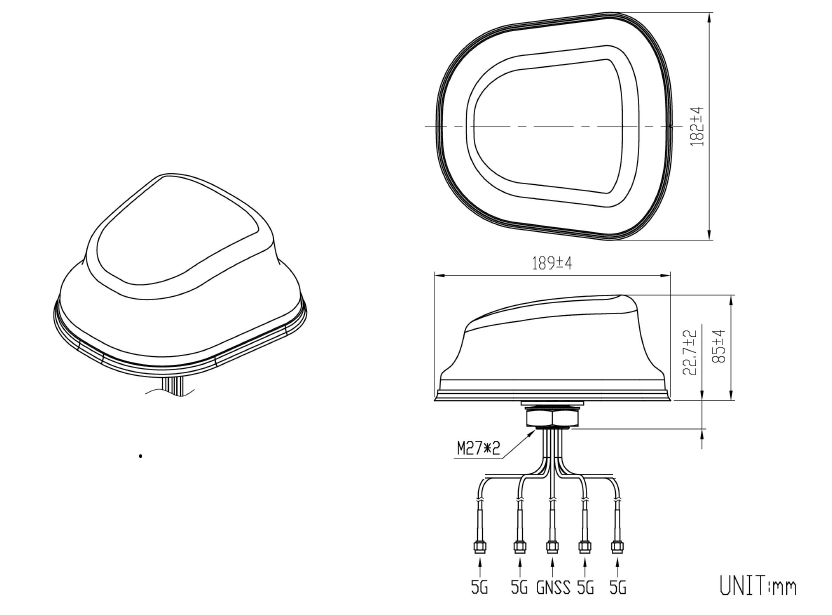

| Mechanical |
Dimension | 190mm *183mm*22.7mm |
| Connector Type | SMA or others | |
| Radome | PC540+UV234 fire retartant UV stabilized | |
| Cable | ASLR 200 fire retardant (around 30cm ) | |
| Environmental |
Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% | |
| Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
| Ingress Protection |
IP67(exclude cable outlet) |
|
| Environmentally Friendly | ROHS Compliant | |
