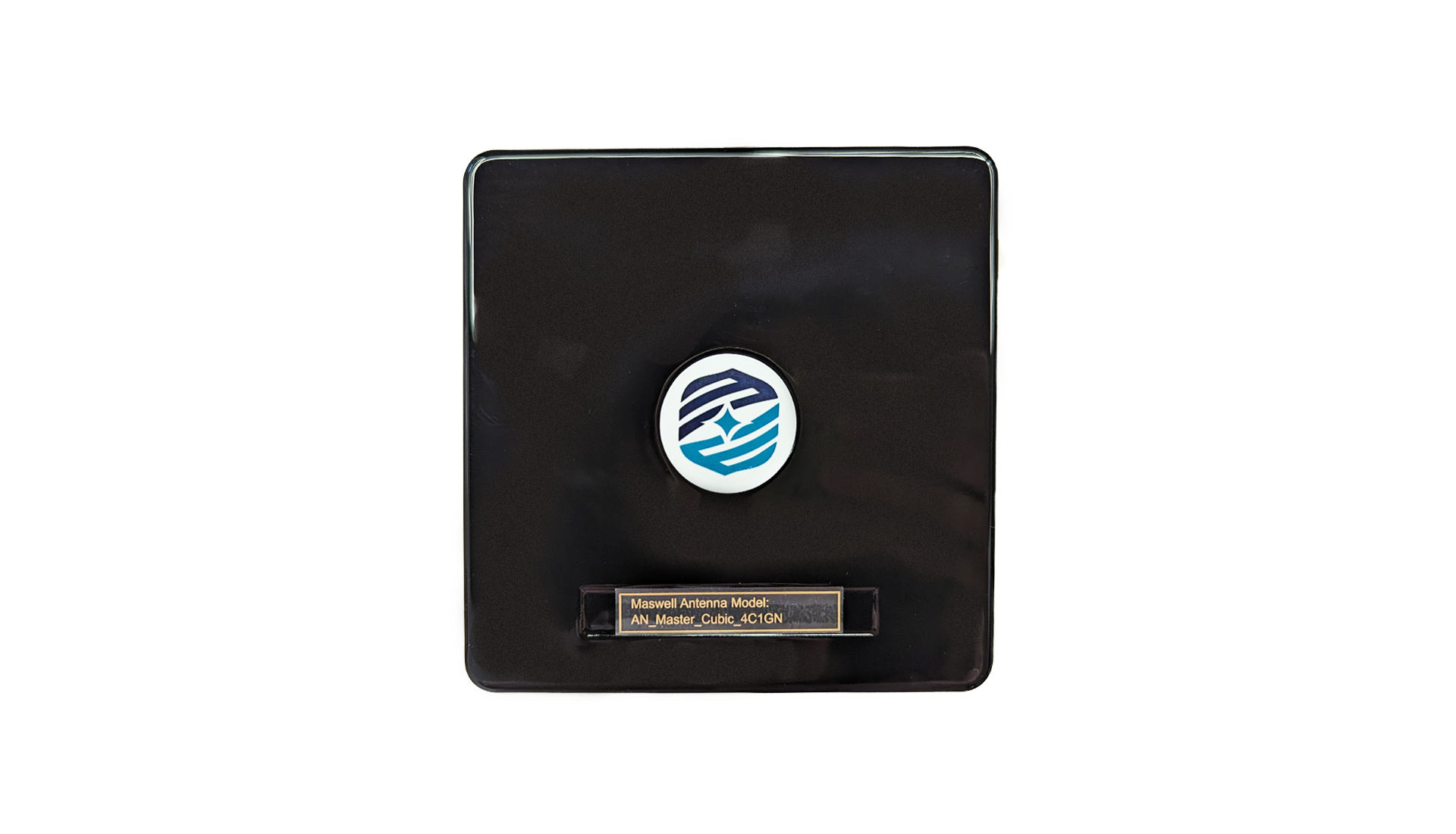

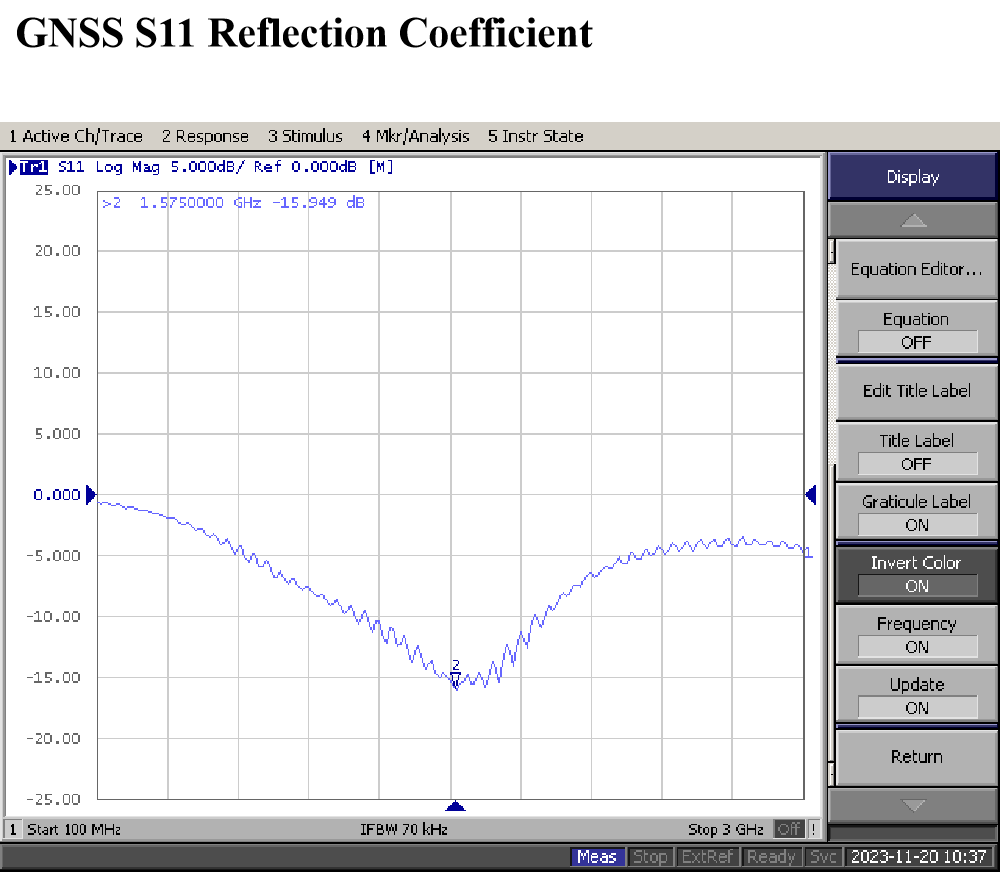

| Item | Specifications | ||
| GNSS Antenna (GPS/GLONASS/ Beidou/Gaileo) |
Dielectric Antenna |

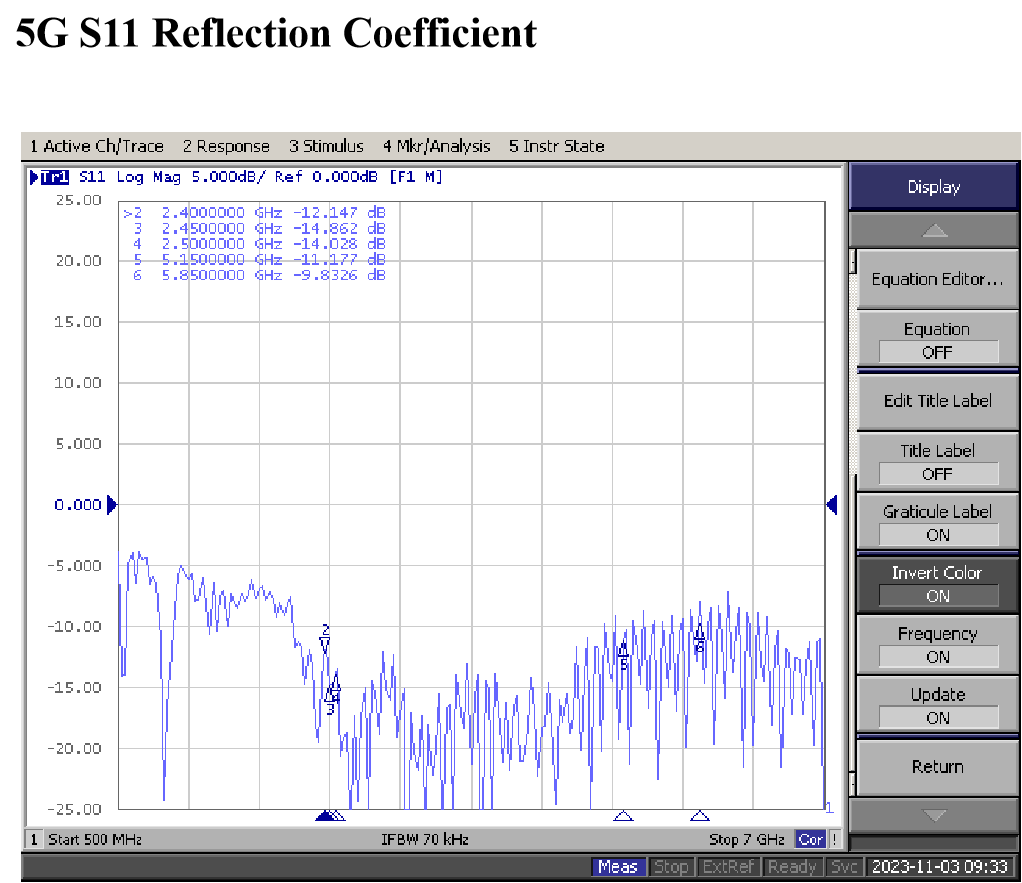

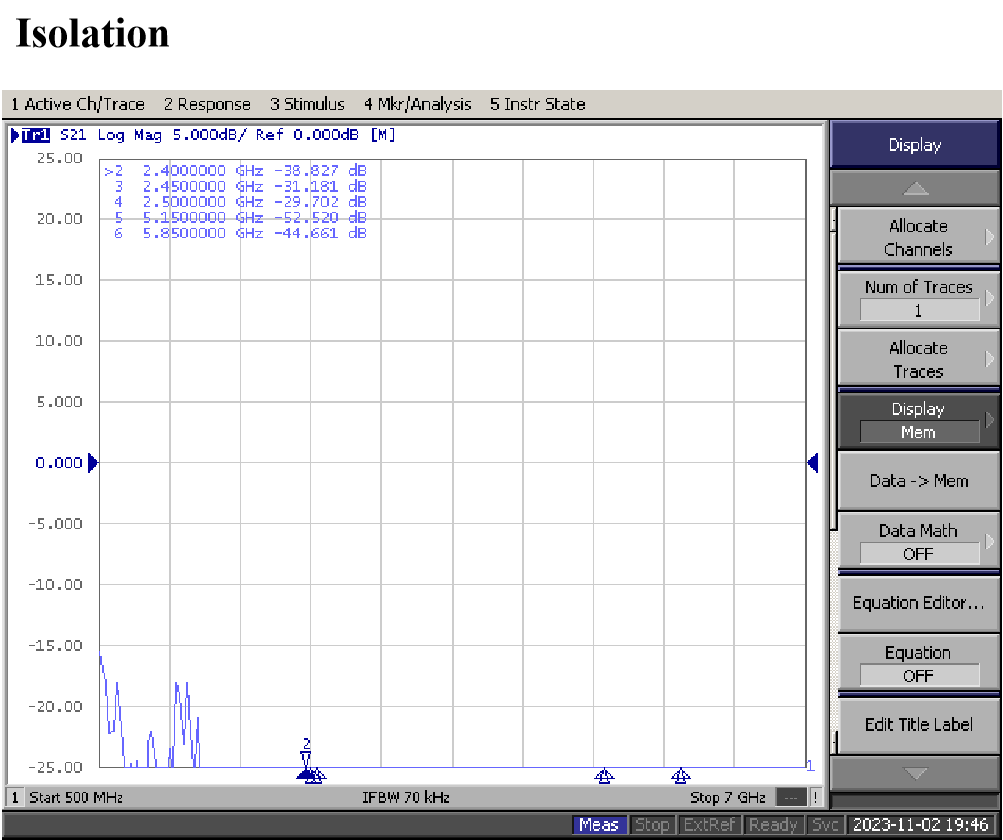

Center Frequency | 1561.098~1602MHz |
| Polarization | RHCP | ||
| Gain | 5dBic@PCB（Zenith） | ||
| V.S.W.R | ＜1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA |
Gain | 28±2dB | |
| Noise Figure | ≤1.5dB | ||
| Filter Insertion Loss | ＜3dB | ||
| Supply Voltage | 3~5V DC | ||
| Current Consumption | ＜20mA | ||
| V.S.W.R | ＜2.0 | ||
| Antenna 1: 5G/4G LTE/WiFi6E/UWB | Frequency Range | 600MHz~8.0GHz | |
| Polarization | Linear | ||
| Gain | Up to 6dBi (20cm Cable Length) | ||
| V.S.W.R | average 3.0 | ||
| Efficiency | >50% | ||
| Antenna 2: 5G/4G LTE/WiFi6E/UWB | Frequency Range | 600MHz~8.0GHz | |
| Polarization | Linear | ||
| Gain | Up to 6dBi (20cm Cable Length) | ||
| V.S.W.R | average 3.0 | ||
| Efficiency | >50% | ||
| Antenna 3: 5G/4G LTE/WiFi6E/UWB |
Frequency Range | 600MHz~8.0GHz | |
| Polarization | Linear | ||
| Gain | Up to 6dBi (20cm Cable Length) | ||
| V.S.W.R | average 3.0 | ||
| Efficiency | >50% | ||
| Antenna 4: 5G/4G LTE/WiFi6E/UWB |
Frequency Range | 600MHz~8.0GHz | |
| Polarization | Linear | ||
| Gain | Up to 6dBi (20cm Cable Length) | ||
| V.S.W.R | average 3.0 | ||
| Efficiency | >50% | ||

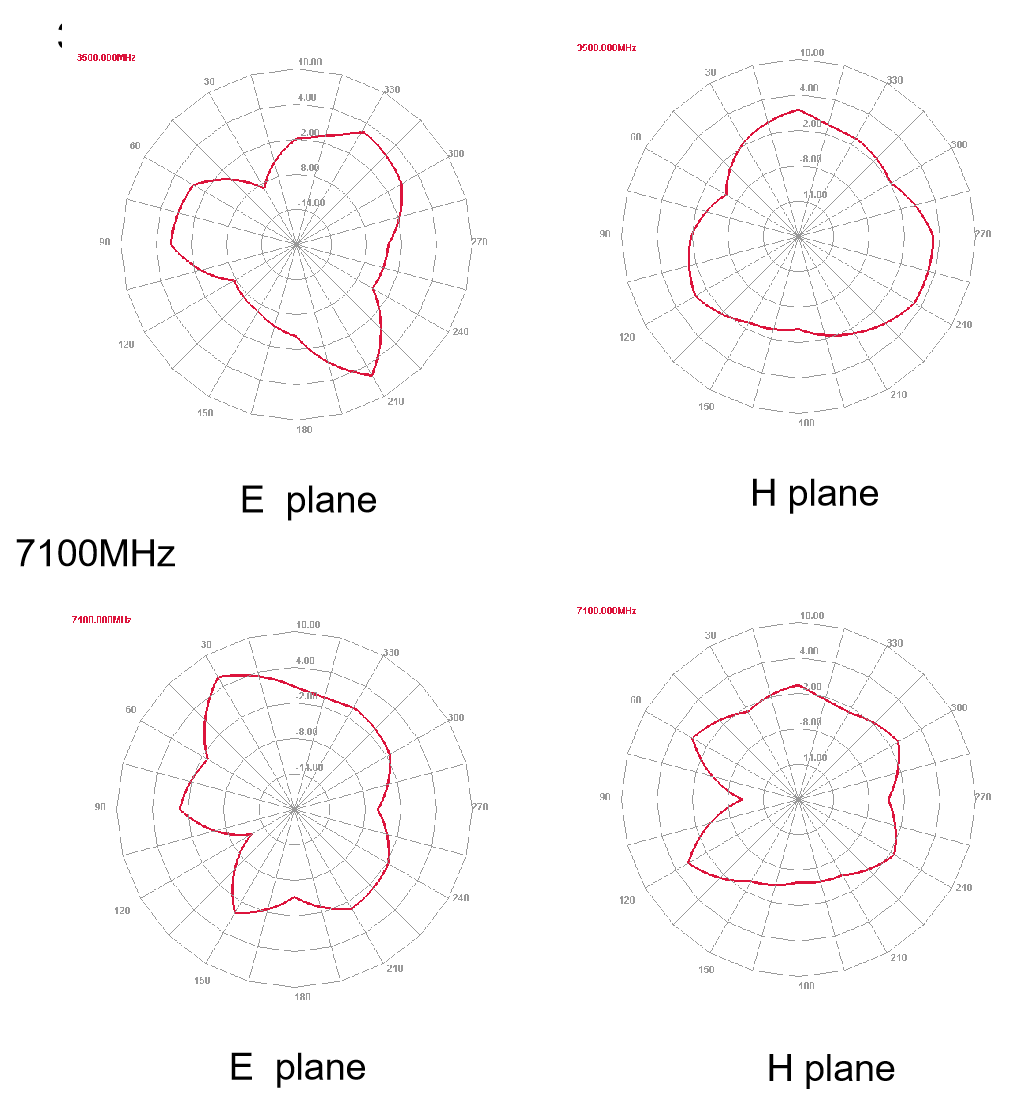

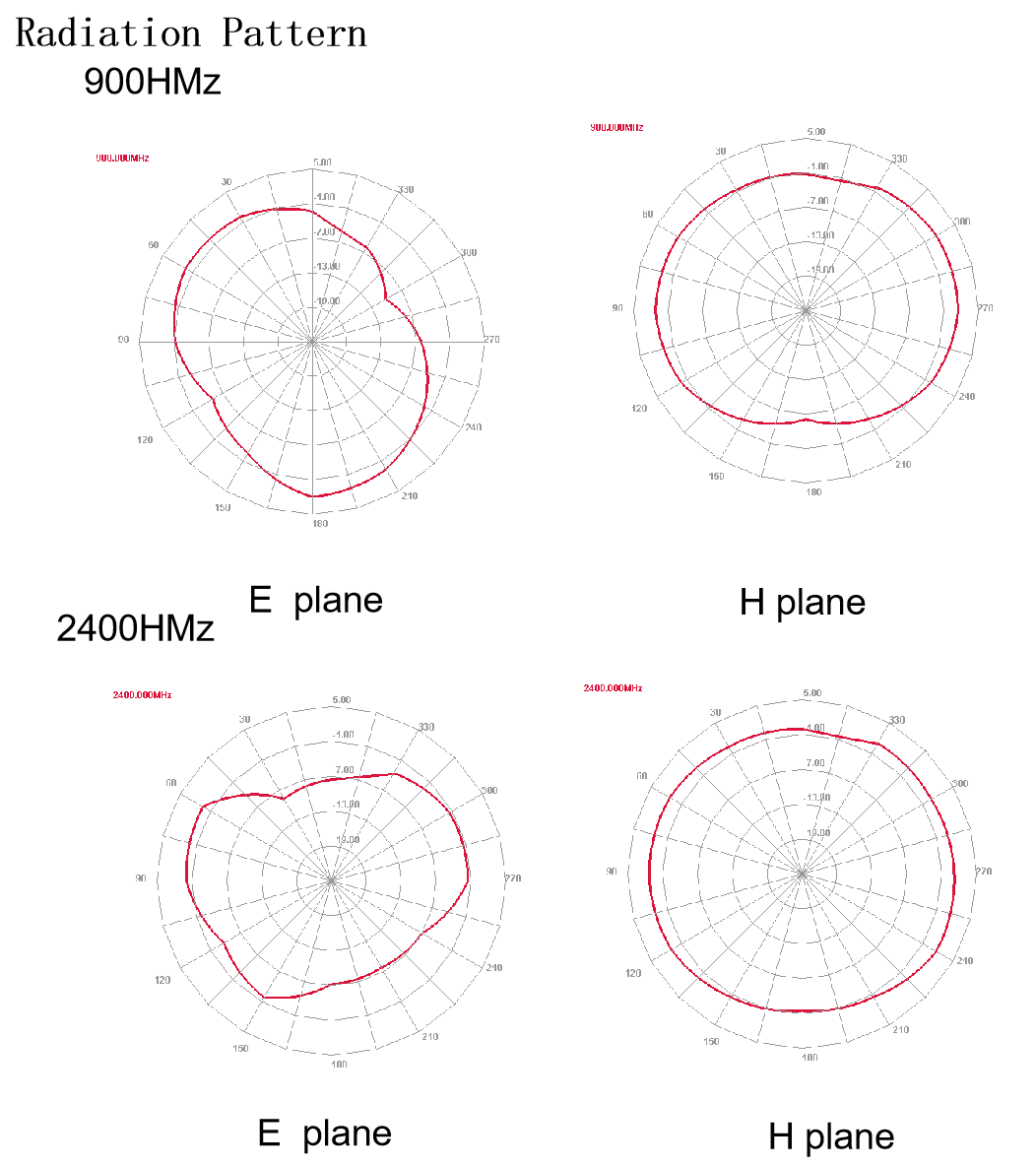

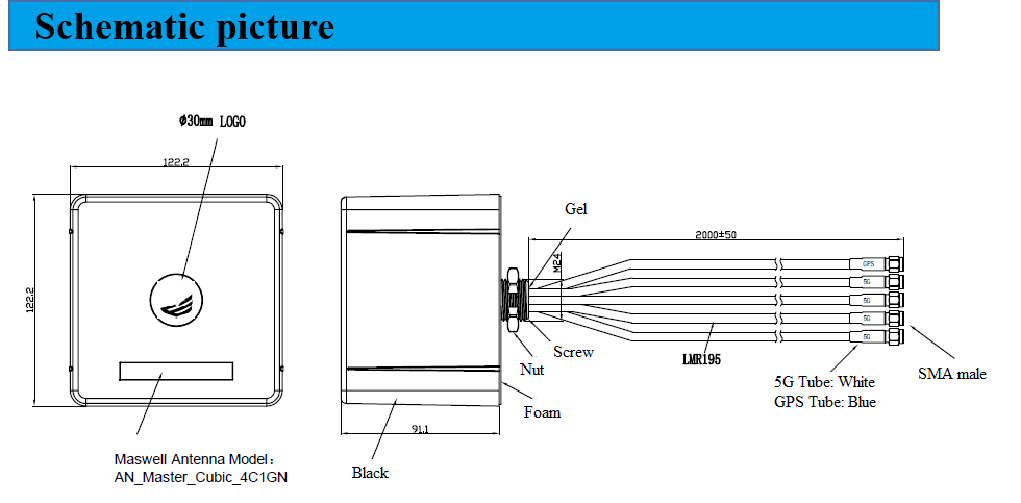

| Mechanical |
Dimension | 122mm *122mm*91mm | |
| Cable | LMR195 1meter or Customised | ||
| Connector | SMA Male for 5G MIMO SMA male for GNSS |
||
| Environmental |
Operating Temperature | -40℃~+85℃ | |
| Relative Humidity | Up to 95% | ||
| Waterproof Grade | IP 67 | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
