| Item | Specifications | ||
| GNSS Antenna (GPS/GLONASS/ Beidou/Gaileo) |
Dielectric Antenna |

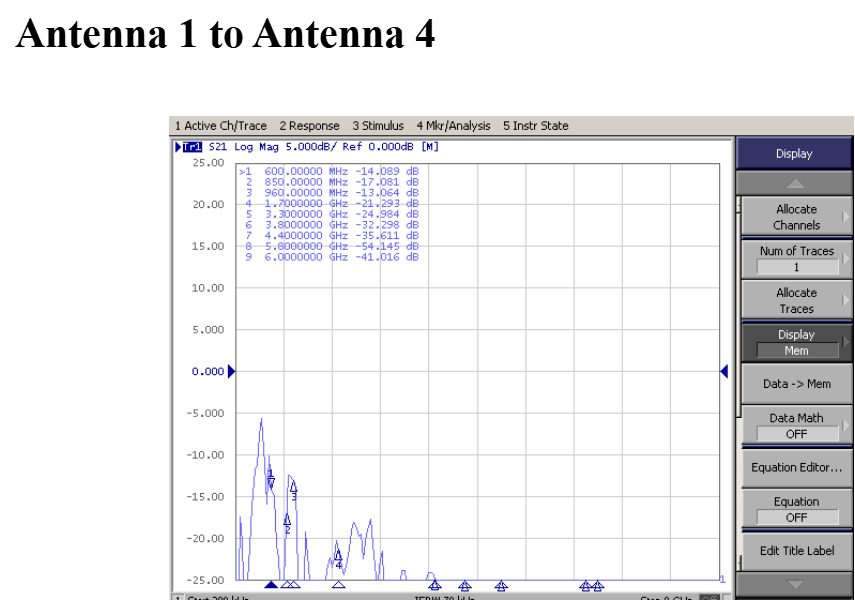

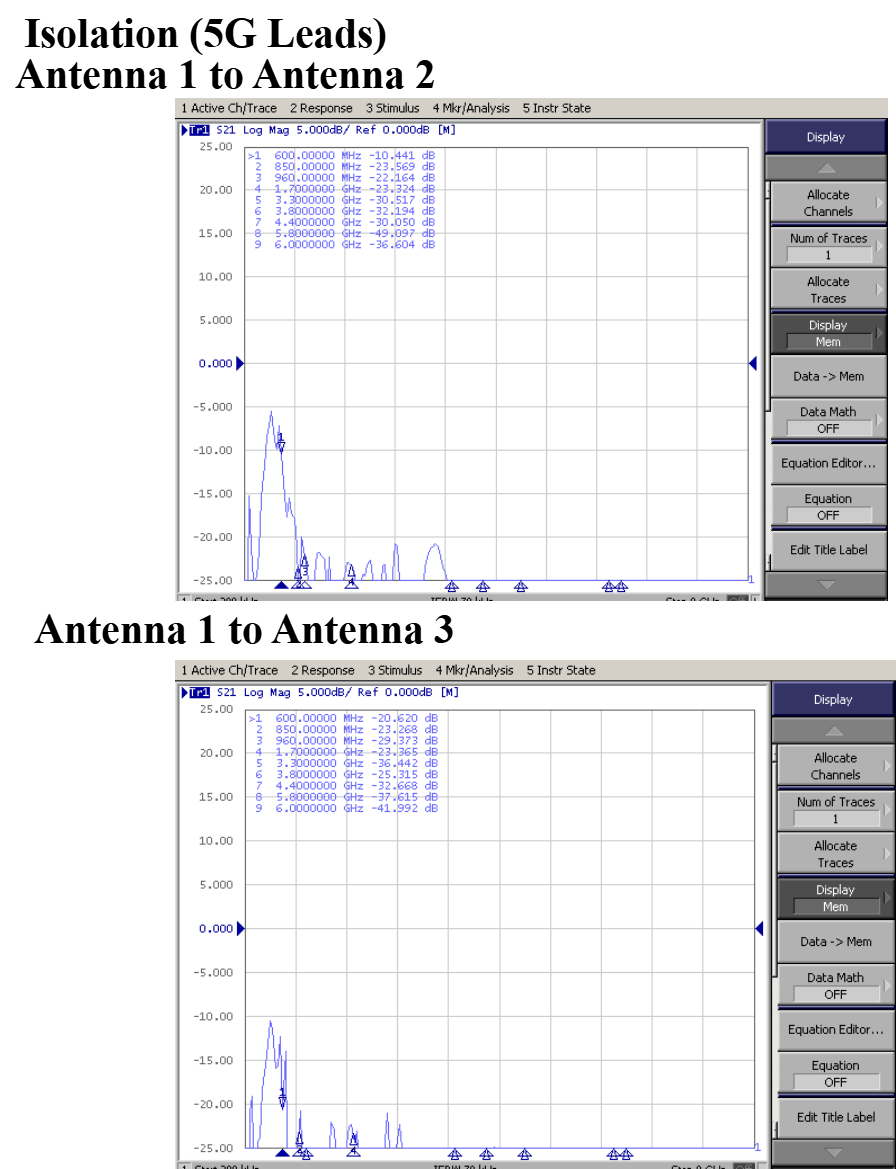

Center Frequency | 1561.098~1602MHz |
| Polarization | RHCP | ||
| Gain | 5dBic@PCB（Zenith） | ||
| V.S.W.R | ＜1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA |
Gain | 28±2dB | |
| Noise Figure | ≤1.5dB | ||
| Filter Insertion Loss | ＜3dB | ||
| Supply Voltage | 3~5V DC | ||
| Current Consumption | ＜20mA | ||
| V.S.W.R | ＜2.0 | ||
| Antenna 1: 5G/4G LTE/WiFi6E/UWB | Frequency Range | 600MHz~8.0GHz | |
| Polarization | Linear | ||
| Gain | Up to 6dBi (20cm Cable Length) | ||
| Radiation Pattern | Omni-directional | ||
| V.S.W.R | average 3.0 | ||
| Efficiency | >50% | ||
| Antenna 2: 5G/4G LTE/WiFi6E/UWB | Frequency Range | 600MHz~8.0GHz | |
| Polarizatio | Linear | ||
| Gain | Up to 6dBi (20cm Cable Length) | ||
| Radiation Pattern | Omni-directoinal | ||
| V.S.W.R | average 3.0 | ||
| Efficiency | >50% | ||
| Antenna 3: 5G/4G LTE/WiFi6E/UWB | Frequency Range | 600MHz~8.0GHz | |
| Polarization | Linear | ||
| Gain | Up to 6dBi (20cm Cable Length) | ||
| Radiation Pattern | Omni-directional | ||

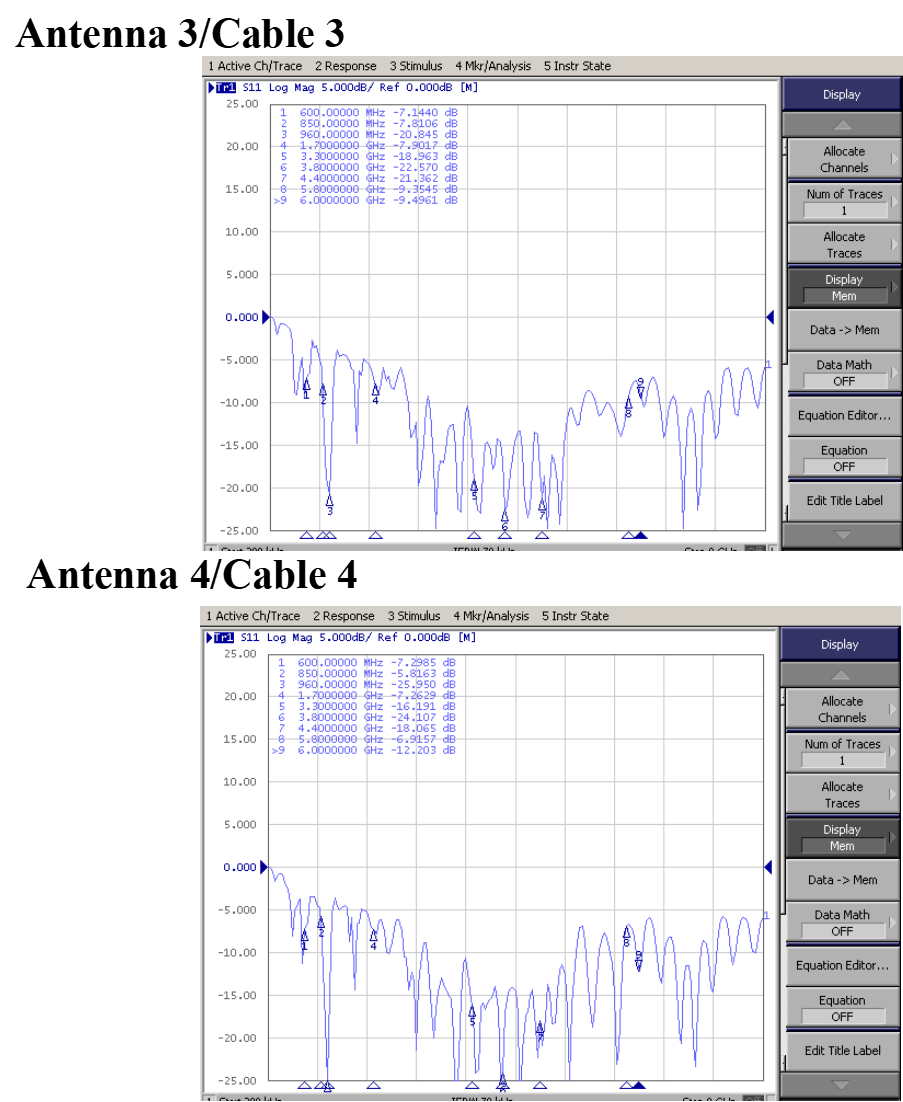

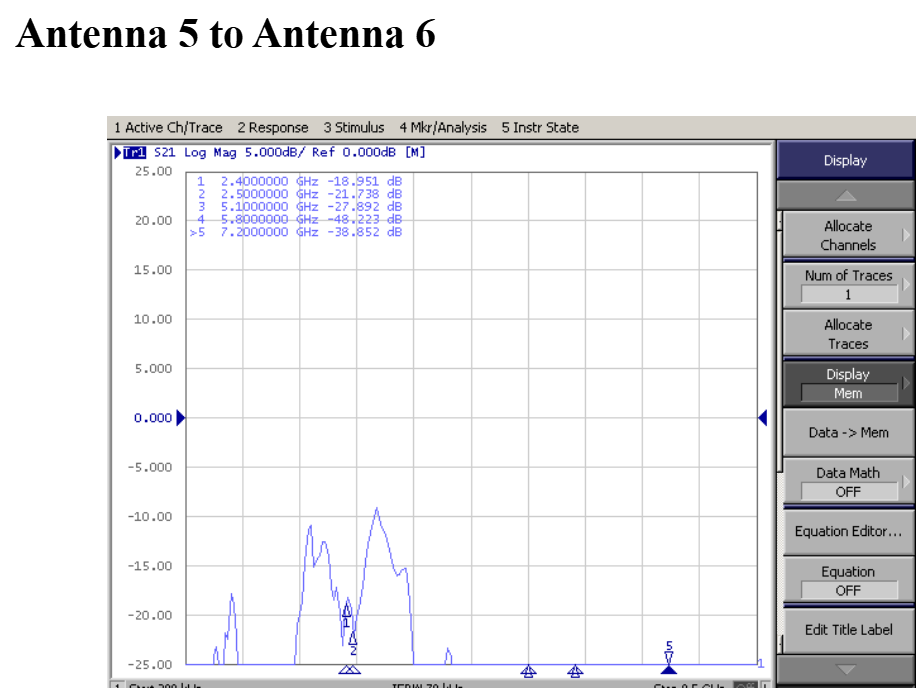

| V.S.W.R | average 3.0 | ||
| Efficiency | >50% | ||
| Antenna 4: 5G/4G LTE/WiFi6E/UWB | Frequency Range | 600MHz~8.0GHz | |
| Polarizatio | Linear | ||
| Gain | Up to 6dBi (20cm Cable Length) | ||
| Radiation Pattern | Omni-directional | ||
| V.S.W.R | average 3.0 | ||
| Efficiency | >50% | ||
| Antenna 5: WiFi WiFi 7/WiFi 6E/Bluetooth/Zigbee/Wimax |
Frequency Range | 2100MHz-7200MHz | |
| Polarization | Linear | ||
| Gain | 4dBi | ||
| Radiation Pattern | Omni-directional | ||

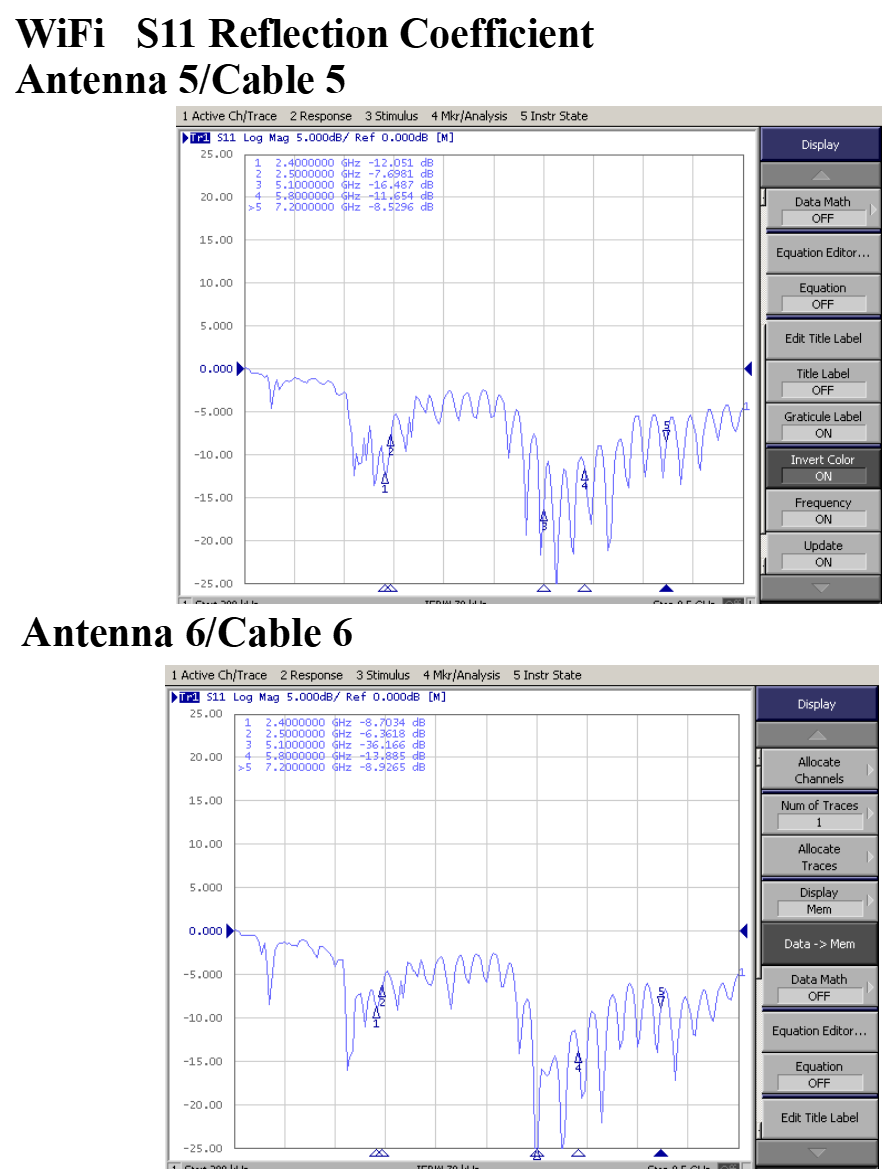

| V.S.W.R | ＜1.5 | ||
| Impendance | 50Ω | ||
| Antenna 6: WiFi WiFi 7/WiFi 6E/Bluetooth/Zigbee/Wimax |
Frequency Range | 2100MHz-7200MHz | |
| Polarization | Linear | ||
| Gain | 4dBi | ||
| Radiation Pattern | Omni-directional | ||
| V.S.W.R | ＜1.5 | ||
| Impendance | 50Ω | ||

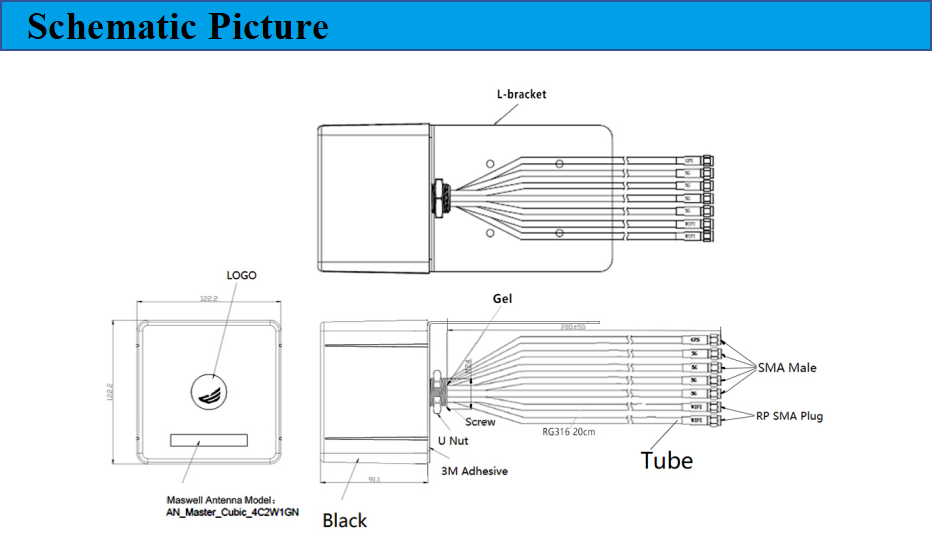

| Mechanical | Dimension | 122mm *122mm*91mm | |
| Antenna Mount | Screw+L plate U bolt | ||
| Connector | SMA Male for 5G MIMO SMA male for GNSS RP SMA Plug for WIFI MIMO |
||
| Cable | RG316 20cm+LMR 240 equivalent 2 meters | ||
| Environmental | Operating Temperature | -40℃~+85℃ | |
| Relative Humidity | Up to 95% | ||
| Waterproof Grade | IP 67 （EURO：EN 60529:1991+A1:2000+A2:2013+AC:2019 CHINA：GB/T4208-2017） | ||
| Radome Material | ASA/(UL Yellow Card) | ||
| UV Exposure & Water Immersion | F1 (UL746C) UV stabilized | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
