| Item | Specifications | ||

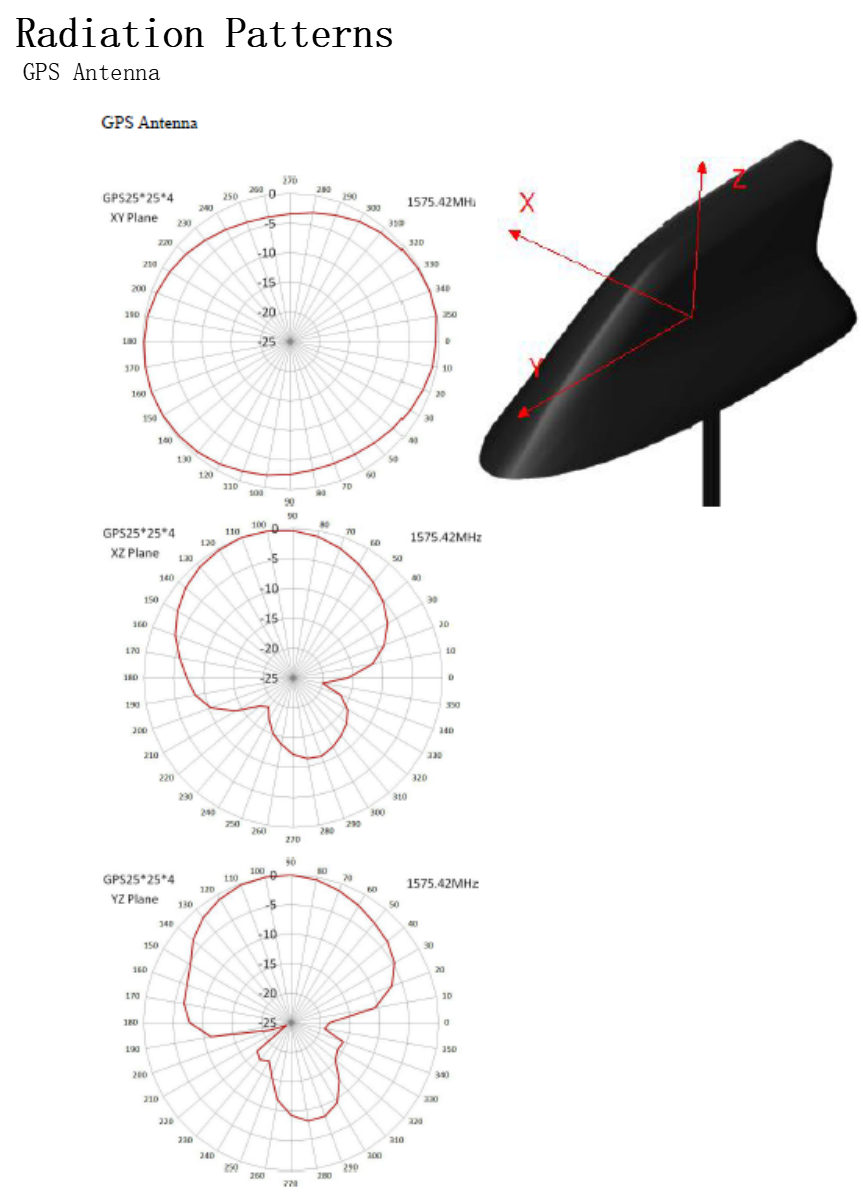

| GNSS Antenna |
Dielectric Antenna |
Center Frequency | 1561.098MHz-1602MHz GPS/GLONASS/GAILEO/BEIDOU |
| Polarization | RHCP | ||
| Gain | 2dBic（Zenith） | ||
| V.S.W.R | ＜1.5 | ||
| Impendance | 50Ω | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | ＜2.0dB | ||
| V.S.W.R | ＜2.0 | ||
| Supply Voltage | 3~5V DC | ||
| Current Consumption | ＜15mA | ||

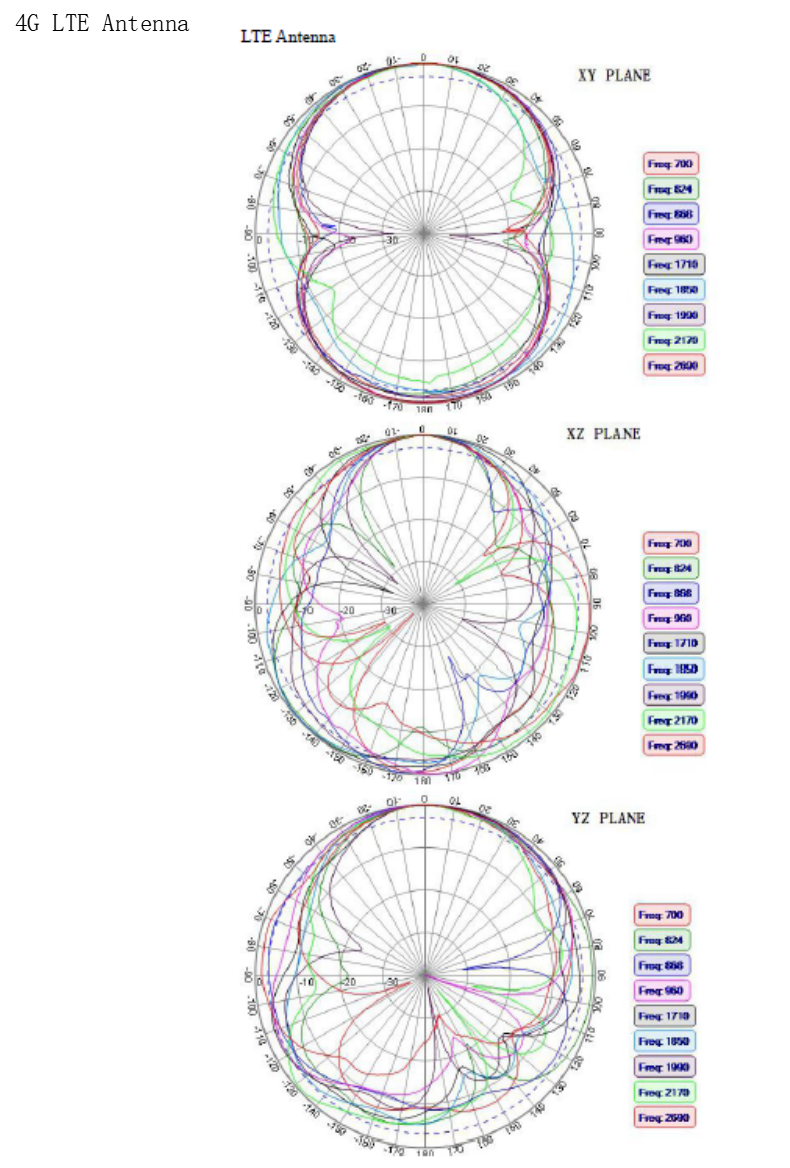

| 4G LTE Antenna | Frequency Range | 698~960/MHz/1710~2690MHz | |
| V.S.W.R | <3.0 | ||
| Polarization | Linear | ||
| Gain | 3.5dBi(Zenith) | ||
| Impendance | 50Ω | ||

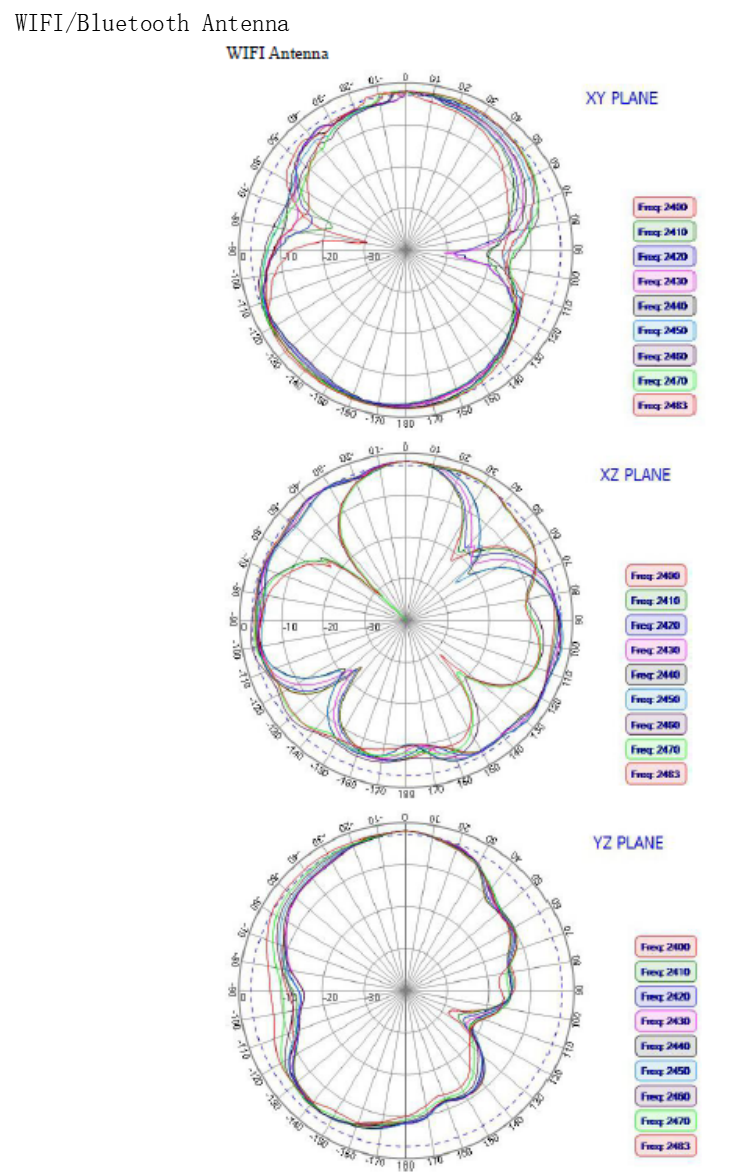

| WIFI/Bluetooth Antenna | Frequency Range | 2400~2483.5MHz | |
| Polarization | Linear | ||
| Gain | 3.0dBi(Zenith) | ||
| V.S.W.R | ＜2.0 | ||
| Impendance | 50Ω | ||

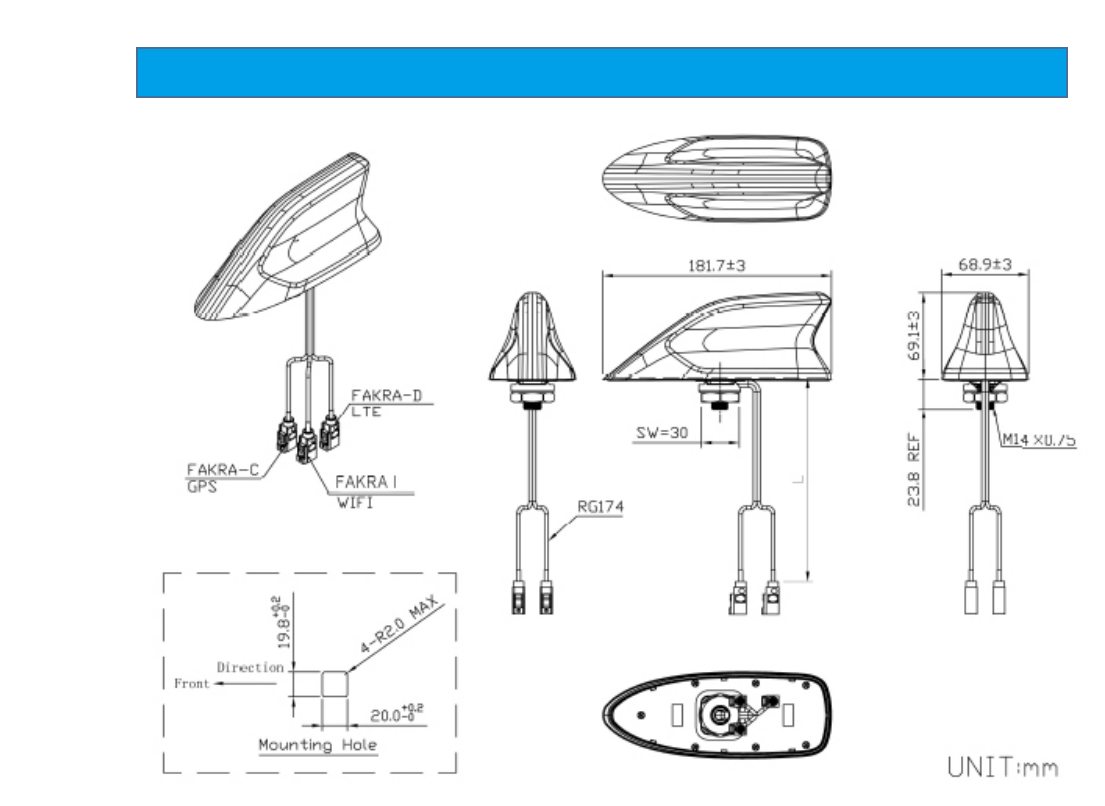

| Mechanical | Cable | RG174 | |
| Connector | GNSS: Fakra C, 4G :FAKRA D, WIFI/BT: FAKRA I | ||
| Mounting Method | Screw | ||
| Environmental | Operating Temperature | -40℃~+85℃ | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP67 (exclude cable outlet) | ||
| Vibration | 10 to 1000Hz G=28.7m/s² | ||
| Environmentally Friendly | ROHS Compliant | ||
