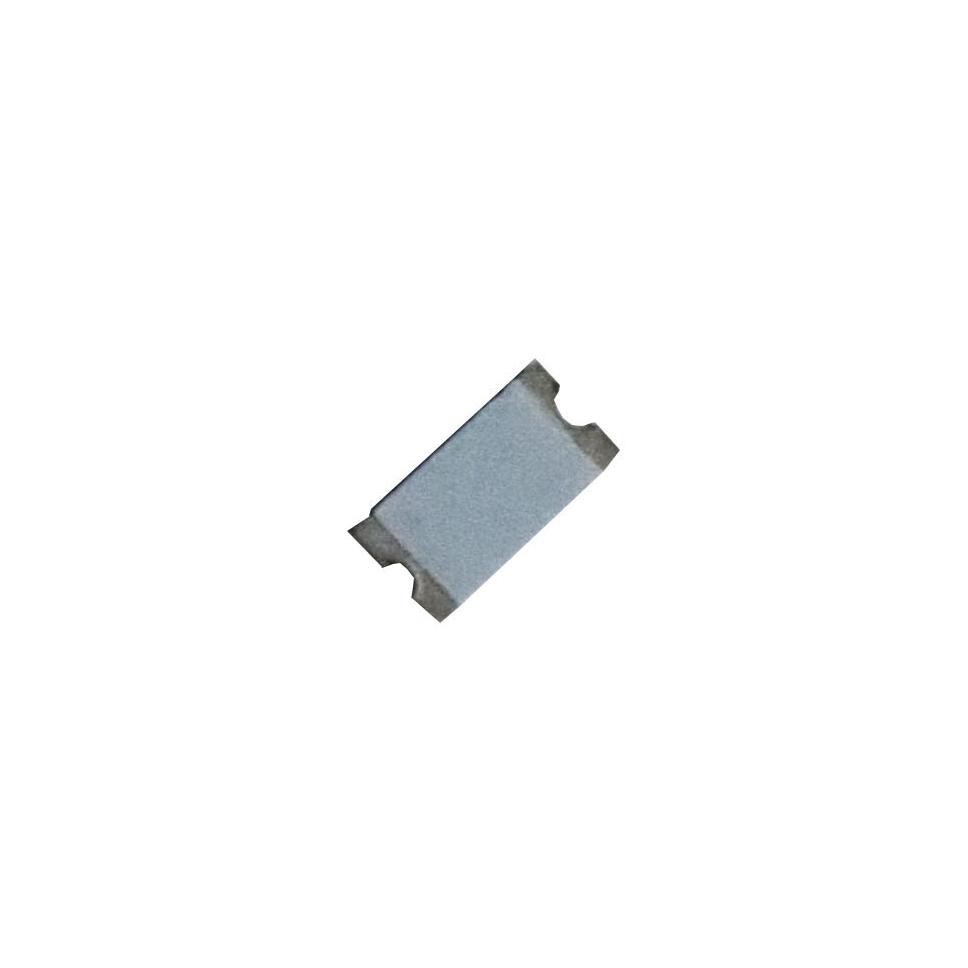

Maswell Microwave Chip Antenna series are designed to be used
PHS applications. All the models are of compact size and are engi
neered for SMD chip design.

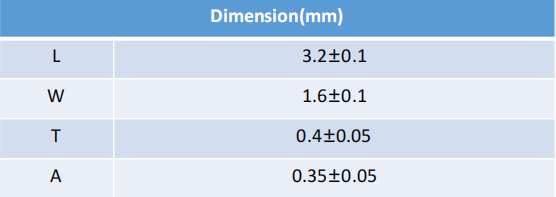

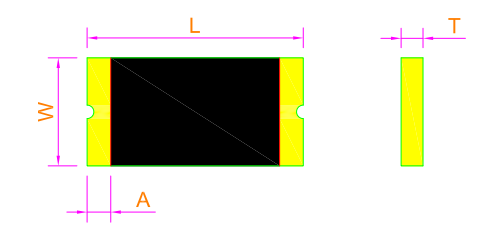

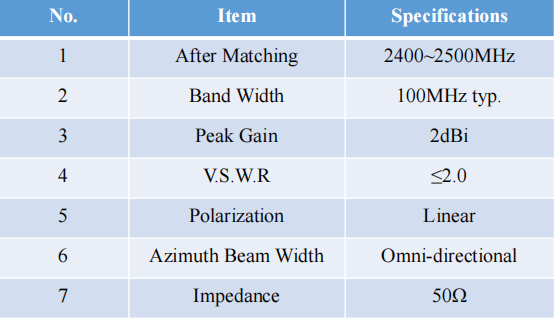

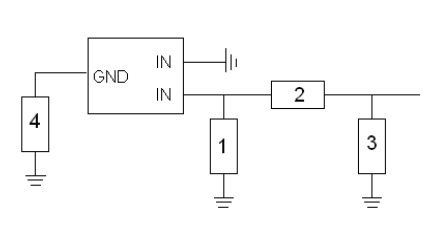

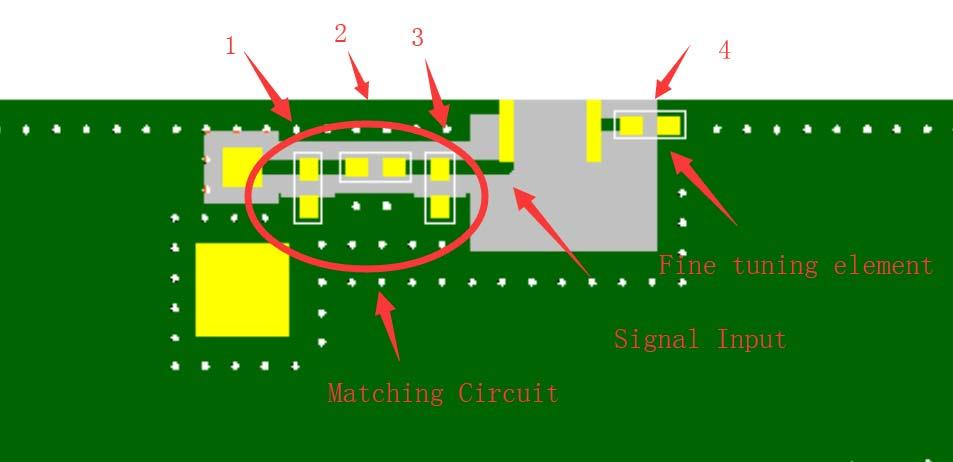

3、Evaluation Board and Matching Circuits 3216 Foot Print

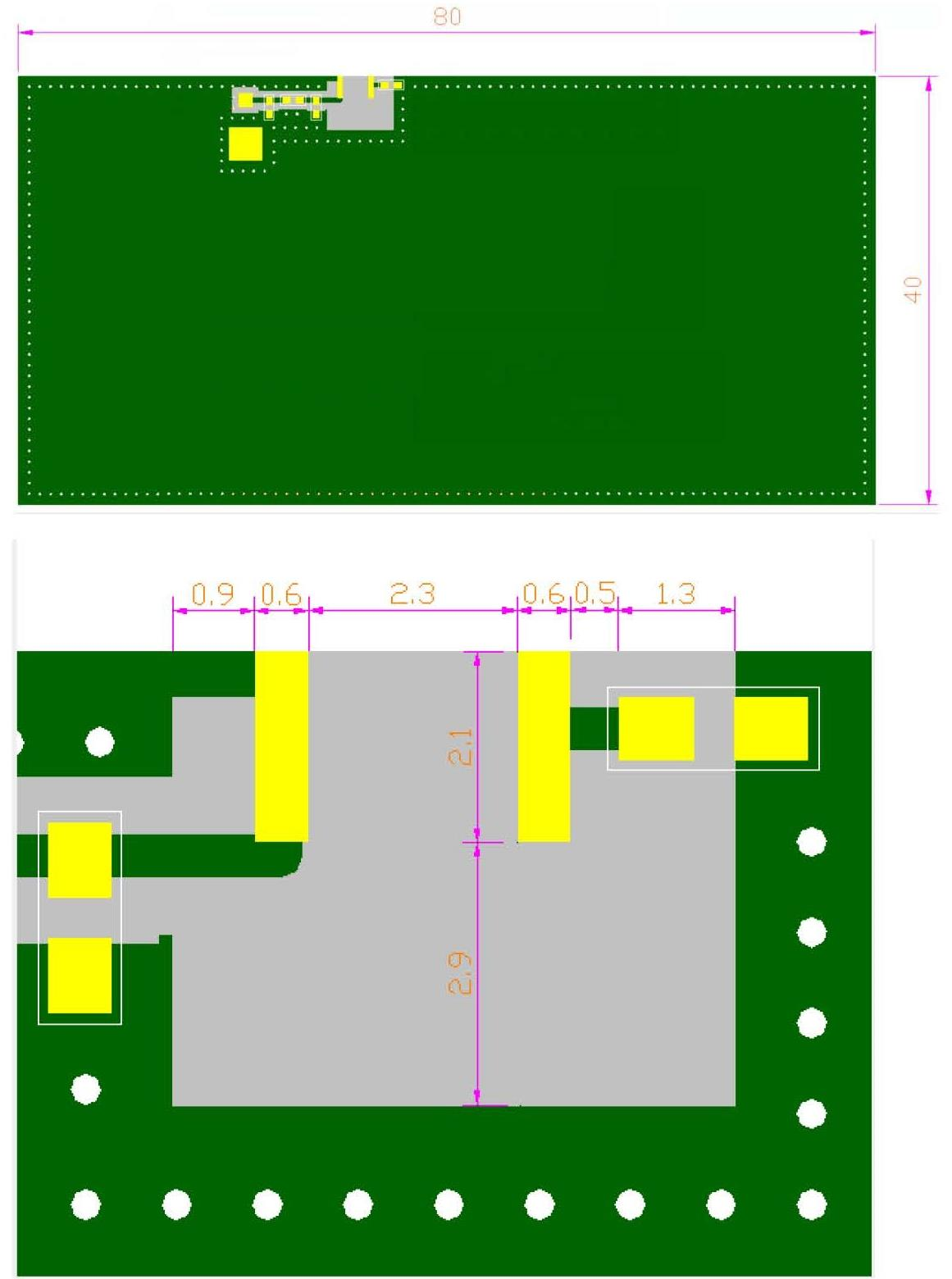

3216 Foot Print ( Unit：mm)

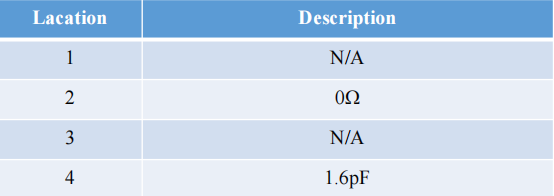

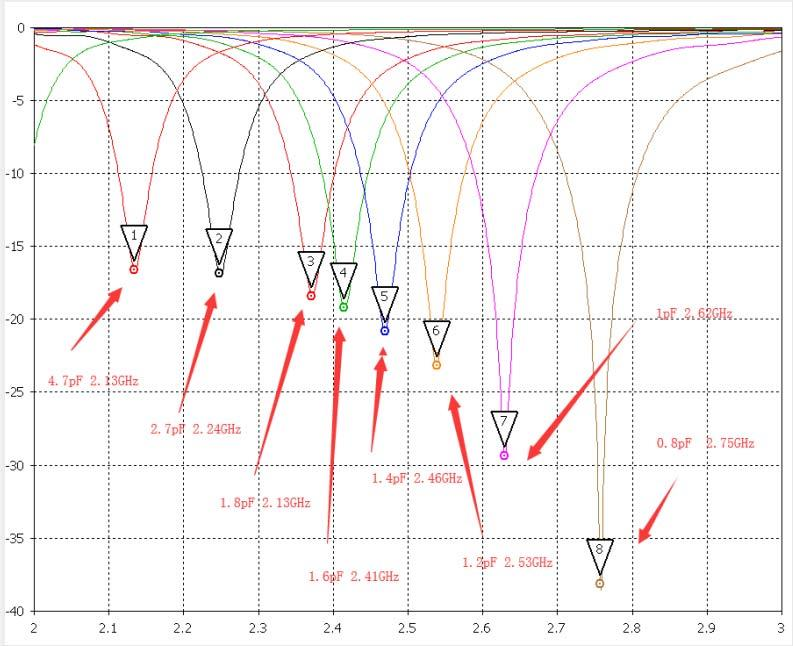

Reference for frequency tuning element

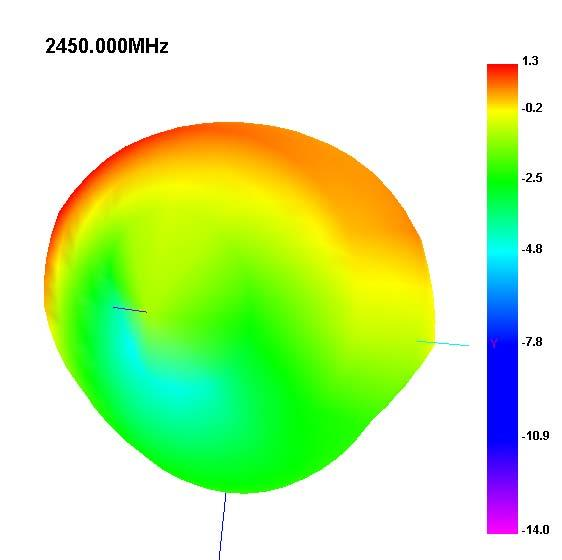

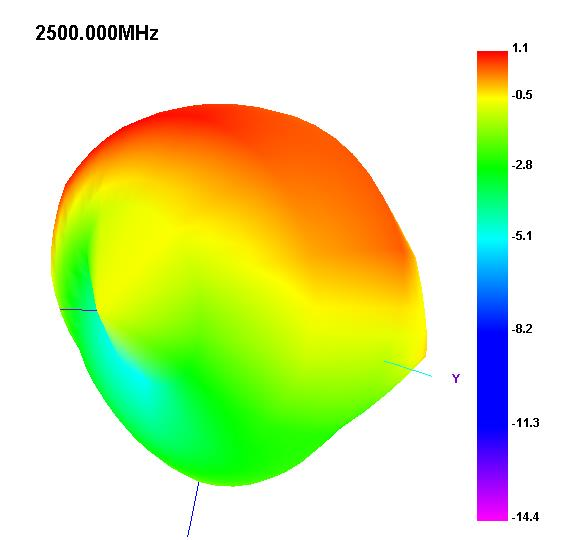

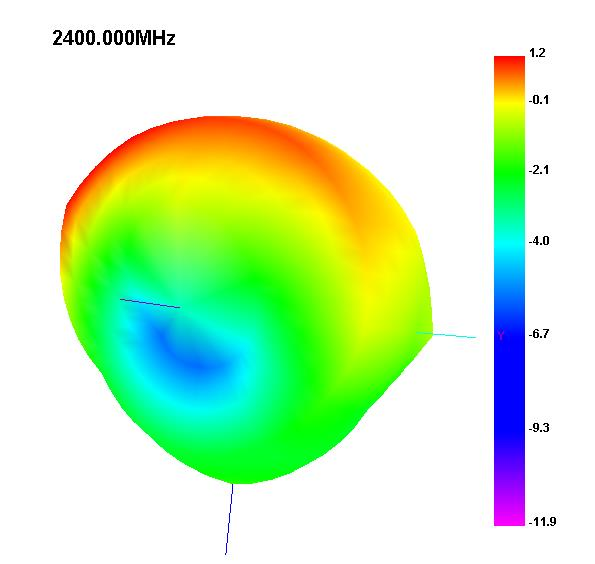

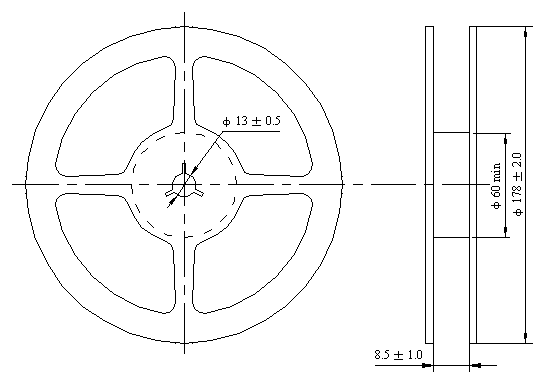

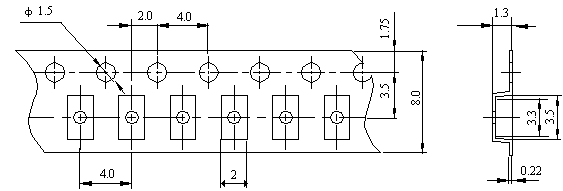

7、Packaging and Dimensions
Remarks for Package：
Reserve a length of 150~200mm for the trailer of the carrier and
250~300 mm for the leader of the carrier and further 250mm of cover
tape at the leading part of the carrier.
Oxidizable, 60 months in vacuum sealed bag . Material, please repack
within 168 hours by re-seal the package treatment after use them.
Storage Temperature Range : <30 degree C, Humidity : <60%RH
