| Item | Specifications | |
| Antenna | Frequency Range | 2100Mhz-7200MHz |

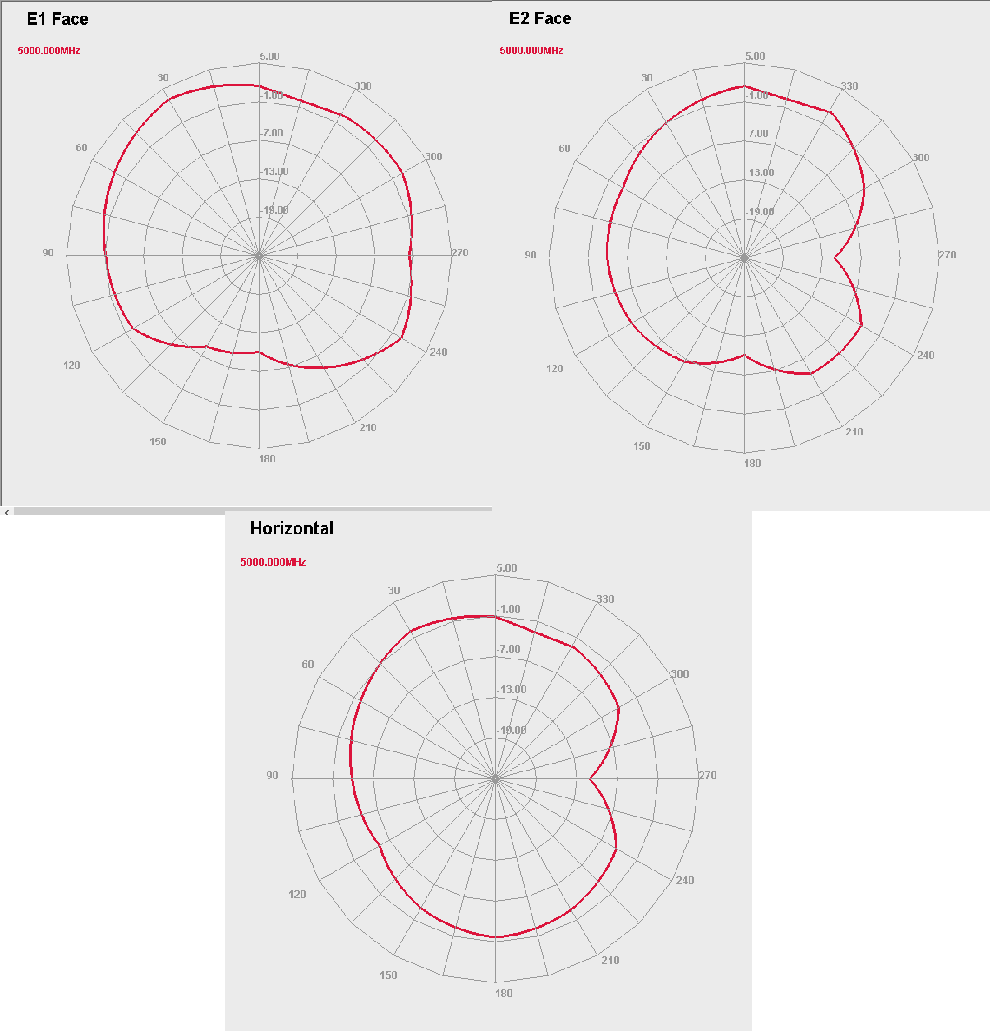

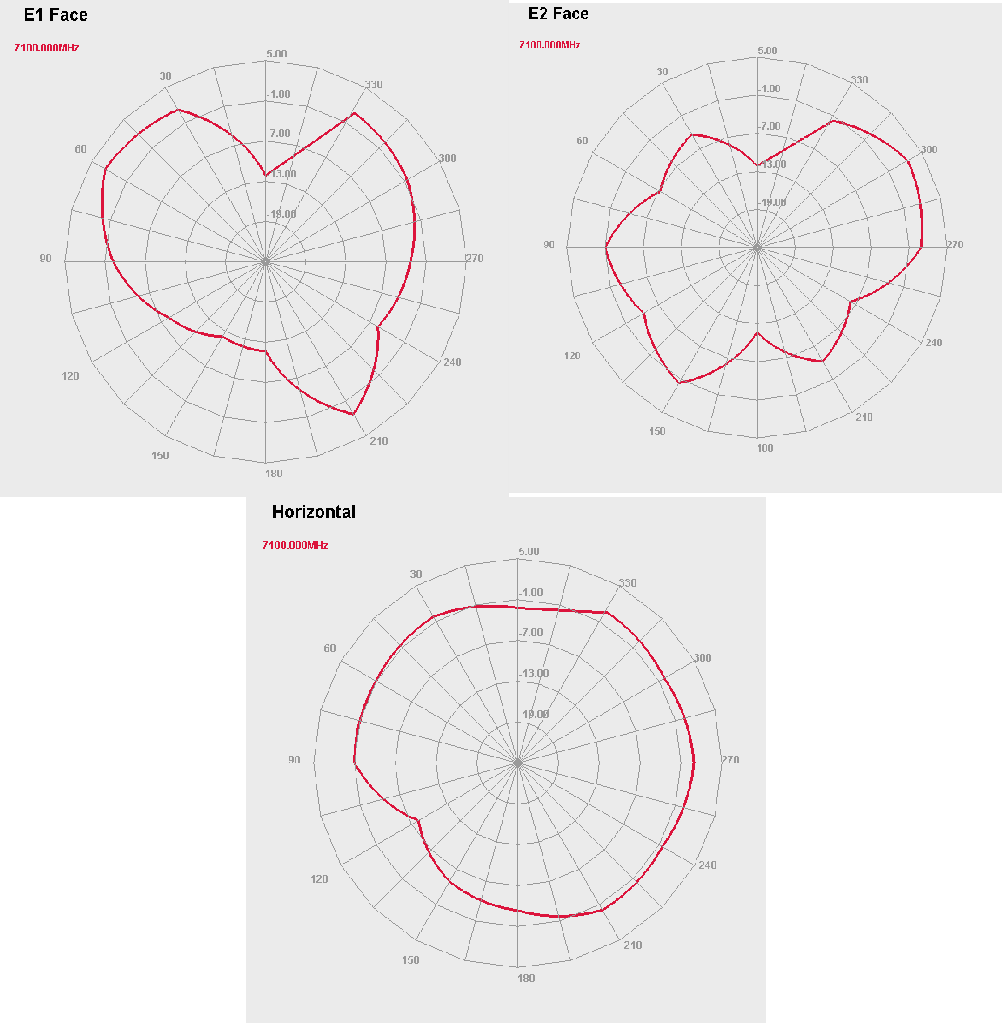

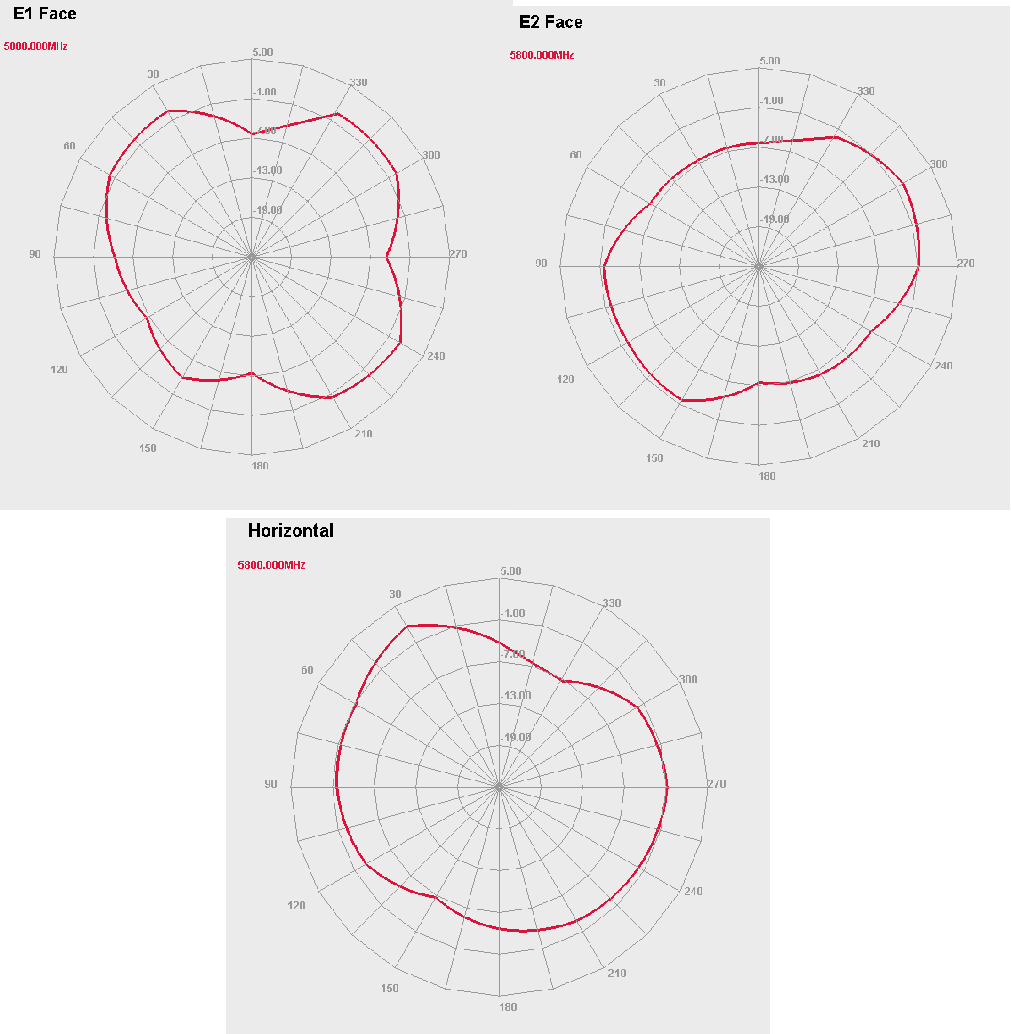

| Polarization | Linear | |

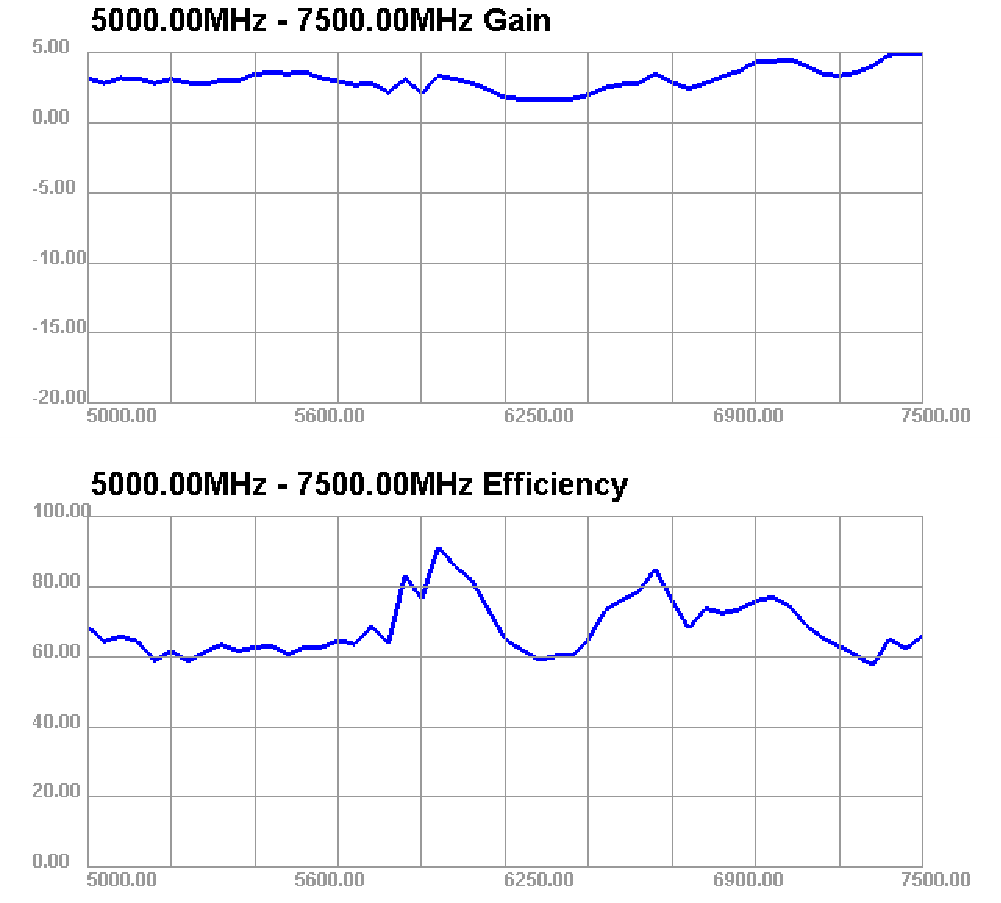

| Gain | 4dBi | |

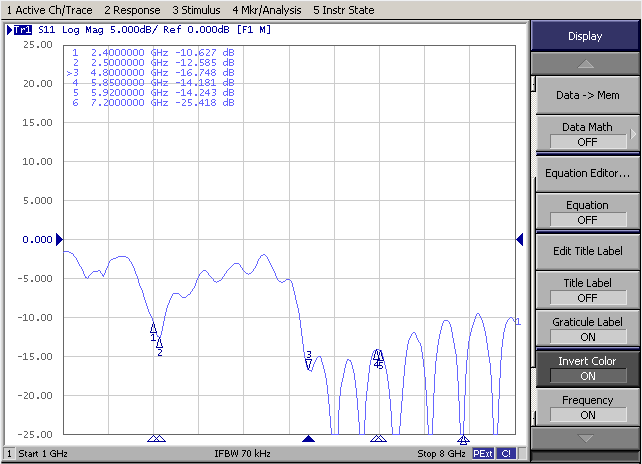

| V.S.W.R | ＜1.5 | |
| Impendance | 50Ω | |

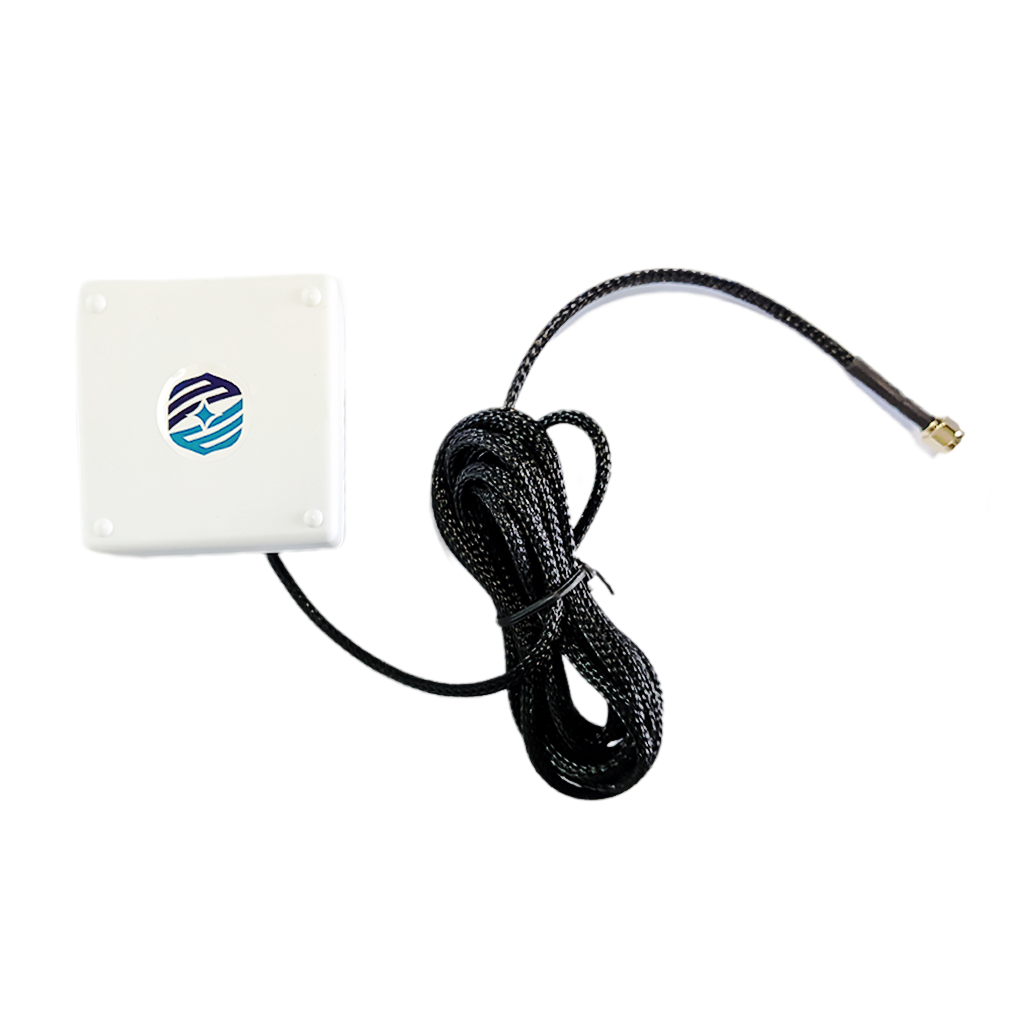

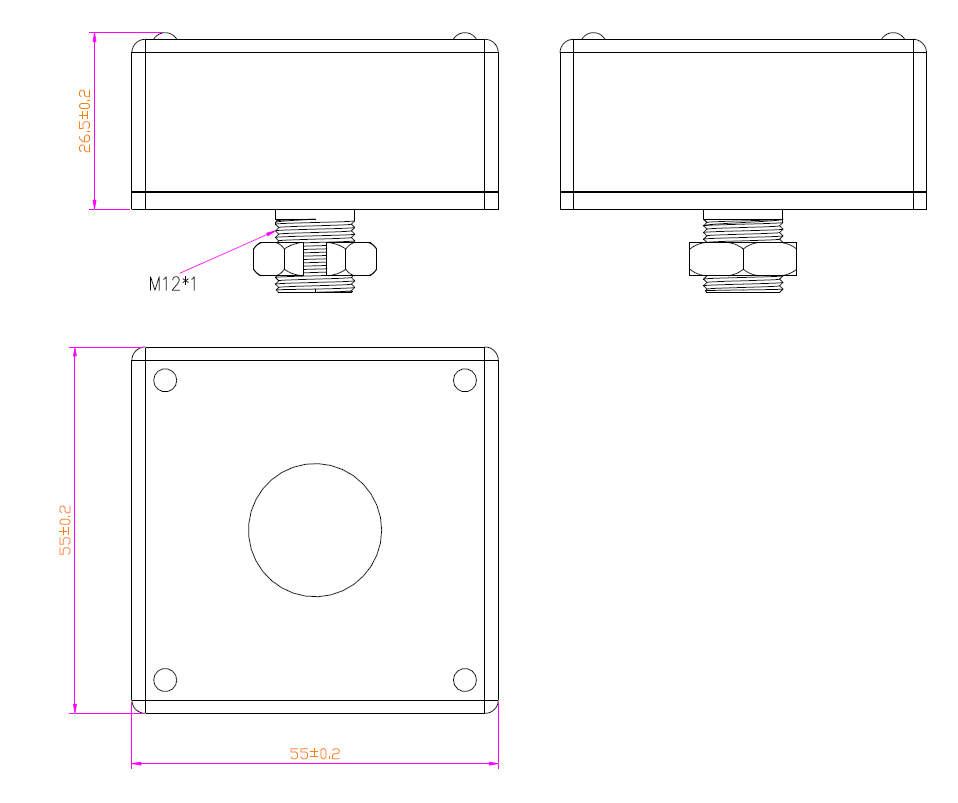

| Dimension | 55 *55 *26.5mm | |
| Mechanical | Cable | RG174 （3M) |
| Connector | RP SMA Plug | |
| Radome Material | ASA (UV Stabilized) | |
| Mounting Method | Screw+3M Adhesive | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% | |
| Waterproof | IP67 （EURO：EN 60529:1991+A1:2000+A2:2013+AC:2019 CHINA：GB/T4208-2017） | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS REACH Compliant | |
| UV Stabilized | YES | |
