| Item | Specifications | |
| Antenna | Frequency Range | 698~2670MHz |
| Polarization | Linear | |
| Gain | 2dBi（Zenith） | |
| V.S.W.R | ＜2.0 | |
| Impendance | 50Ω | |

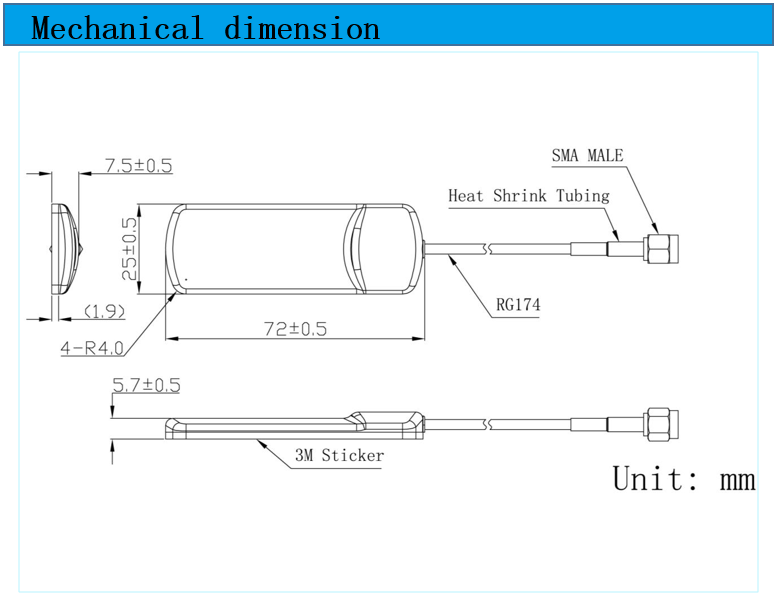

| PCB Dimension | 62.2*22*0.8mm | |
| Mechanical | Cable | RG174 |
| Connector | SMA or others | |
| Radome Material | ABS | |
| Mounting Method | Adhesive | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant |
|
