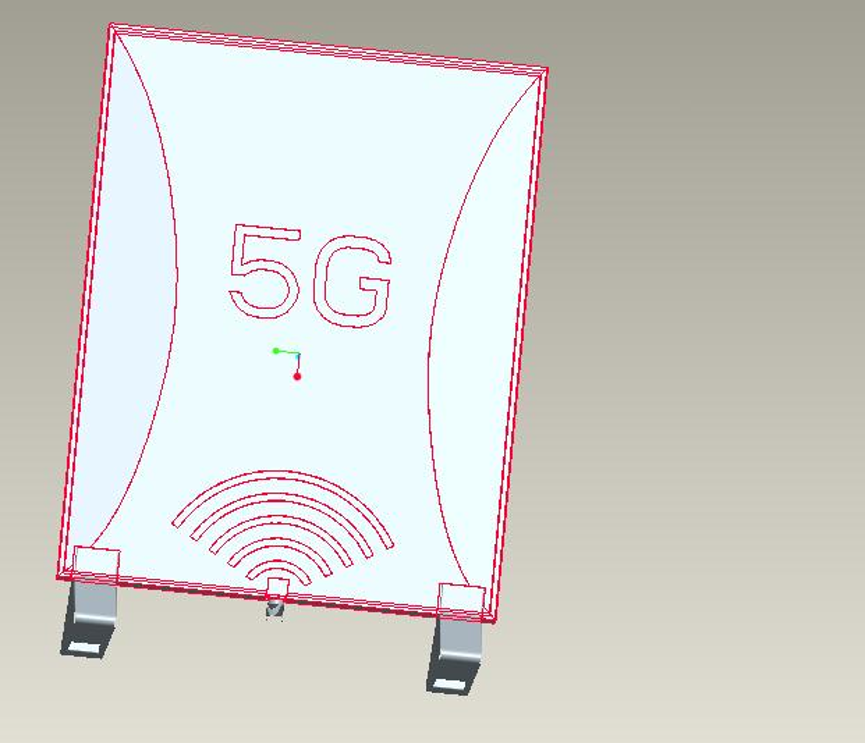

In early 2020, Suzhou Maswell Communication Technology Co. Ltd launched a series of high-gain 5G small base stations and terminal antennas. Fully support 600MHz to 6GHz frequency band, support all 5G, 4G, 3G, GSM and dual-band WiFi frequency bands around the world, a single antenna meets all wireless protocol needs, no need to buy other antennas!
There are two main products in the 5G series: AN_Master_001 and AN_Master_002,!In addition, both antennas have high gain features and can be used in various signal sending and receiving scenarios, where AN_Master_001 gain is 6dBi and AN_Master_002 gain is up to 9dBi.
Test performance:

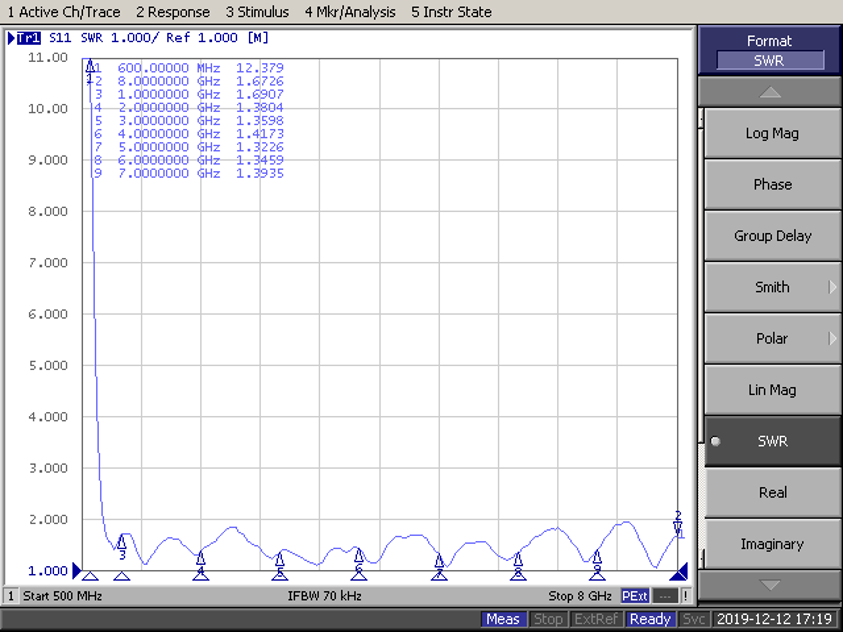

VSWR performance tested

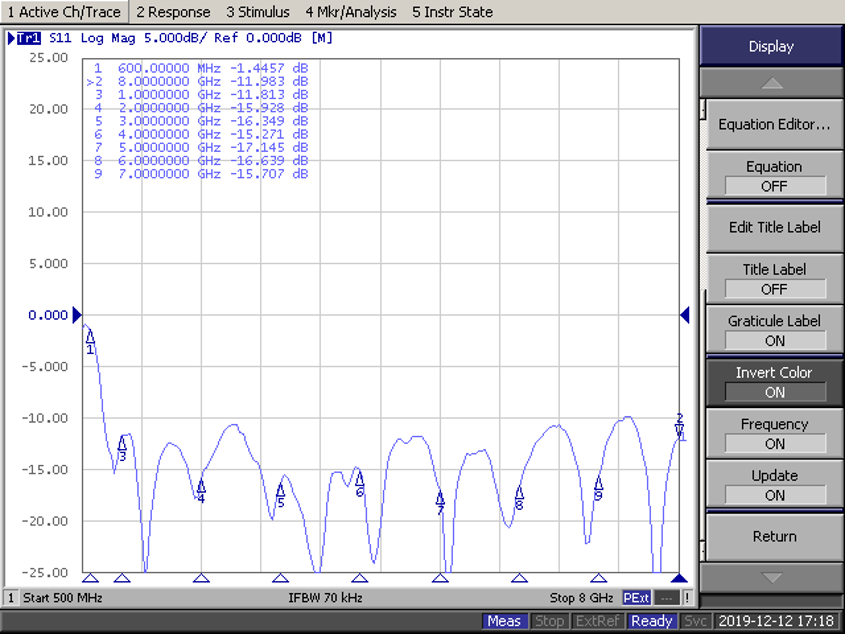

Tested S11 performance
Summary of features:
Support all 5G, 4G, 3G, GSM and dual-band WiFi frequency bands in the world!
A single antenna meets all wireless protocol requirements, no need to buy another antenna!
6dBi, 9dBi high gain is used in various signal transmission and reception scenarios!
The performance parameters
| project |
performance |
| Antenna index |
Frequency Range |
600-6000MHz |
| polarization |
Linear polarization |
| Gain |
6.0dBi |
| Voltage standing wave ratio |
＜2.0 |
| impedance |
50Ω |
| Mechanical index |
size |
18cm*14cm*1cm （Master001）
32cm*25cm*1cm（Master002） |
| cable |
customizable |
| Connector |
SMA or other |
| Installation method |
Magnet / sticky or nut |
| Environmental parameters |
Operating temperature |
-40℃~+85℃ |
| Vibration index |
10 to 55Hz and 1.5mm Amplitude 2 hours test |
| Environmental protection index |
meets theROHS |
The launch of new 5G products has laid a solid foundation for Maswell in the field of antennas, and it also reflected the strength of Maswell as a high-tech innovative enterprise in innovation.
