Maswell Miniaturised 5G Internal Antenna on the Market Covering 800MHz-6000MHz Band
Release time：2021/10/11
MASWELL's new 5G built-in antenna covers the frequency range of 800MHz~6000MHz with a maximum gain of 2.5dBi. The built-in antenna not only supports all current 5G bands, but also is backward compatible with all 4G、LTE、3G and GSM bands worldwide. In addition, all the current WiFi 2.4GHz and 5.8GHz and the future commercial WiFi 6.0GHz are also directly compatible with the technology. The antenna model is small in size, 10cm*1.6cm, excluding the cable, and the cable length can be customized. The antenna is made of FPC material with adhesive installation.

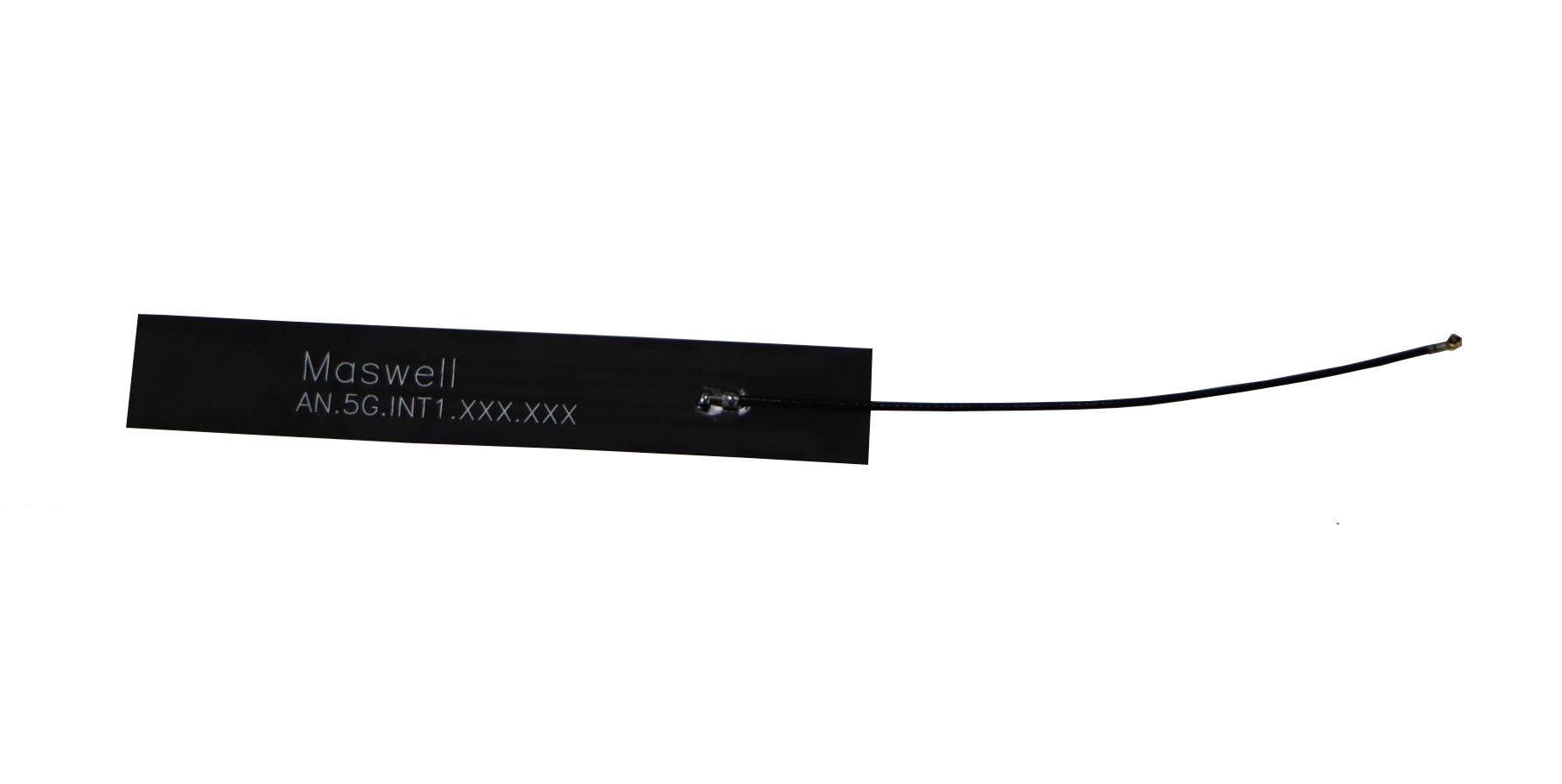

Figure 1. Product Diagram

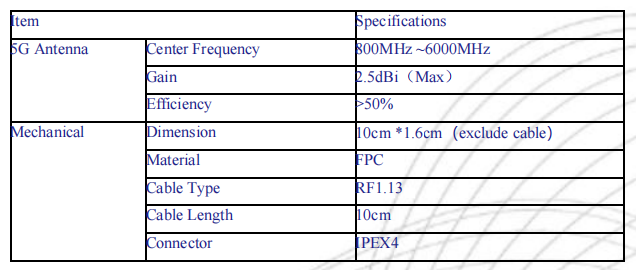

SpecificationsKey Features of AN.5G.INT.100.IP4：
Easy installation by means of adhesive mounting.
Antenna can be directly adapted to IPEX4 generation connector to 5G communication motherboard.
Key Features of AN.5G.INT.100.IP4：
