MASWELL 900/1800/2100 MHz Mini Round Dock 4G/3G/LTE Antenna

Release time:2021/10/26

MASWELL's 4G antenna AN_GSM_016L has a frequency range of 824~960/1710~2170MHz with a maximum gain of 2dBi.The highest gain value is 2dBi, this antenna model adopts magnet type installation method, easy to install and easy to get started; ABS material antenna cover is strong and durable, which can prolong the service life of the product and ensure the stability of the antenna performance. And the price is entry level, suitable for various scenes adaptation.

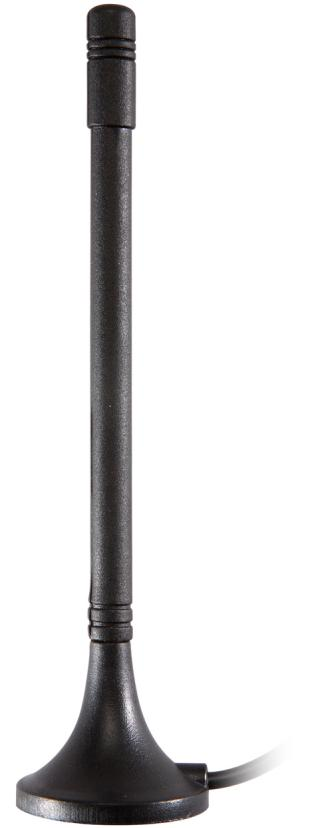

Figure 1. Product Diagram

Product Features of AN_GSM_016L
Frequency Range 824~960/1710~2170MHz
Polarization Linear
Gain 2.0dBi(Zenith)
V.S.W.R <2.0
Impedance 50Ω

Application of AN_GSM_016L
Terminal Equipment
Industrial routing devices
IoT Devices
AR/VR Devices
CPE Equipment

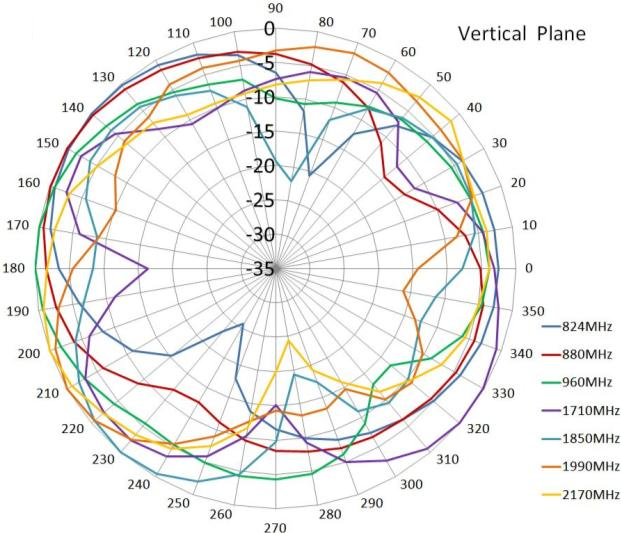

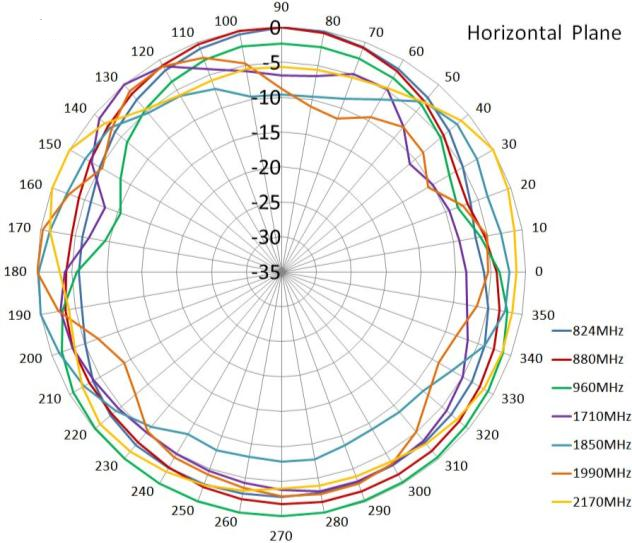

Figure 2-3. Antenna Radiation Patterns
