Maswell has launched a new series of microwave on-chip antennas, the WiFi/Bluetooth on-chip antenna AN_W_CA_5020_M01, which covers a frequency range of 2400~2500MHz and has a gain of 2dBi. The external size, test circuit and matching circuit uses 5020 PCB foot print, which is small in size and satisfies the SMD chip design.
Figure 1. Product Diagram
Product Parameters of AN_W_CA_5020_M01:
| Item |
Specifications |
| After Matching |
2400~2500MHz |
| Band Width |
100MHz typ. |
| Peak Gain |
2dBi |
| V.S.W.R |
≤2.0 |
| Polarization |
Linear |
| Azimuth Beam Width |
Omni-directional |
| Impedance |
50Ω |
Application of AN_W_CA_5020_M01:
Wearable Equipment
Industrial Computer
IoT
Precision Instrument
AR / VR s Equipment
Development board

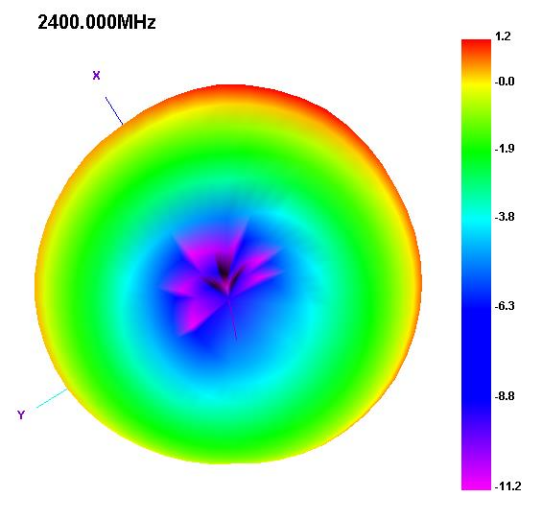

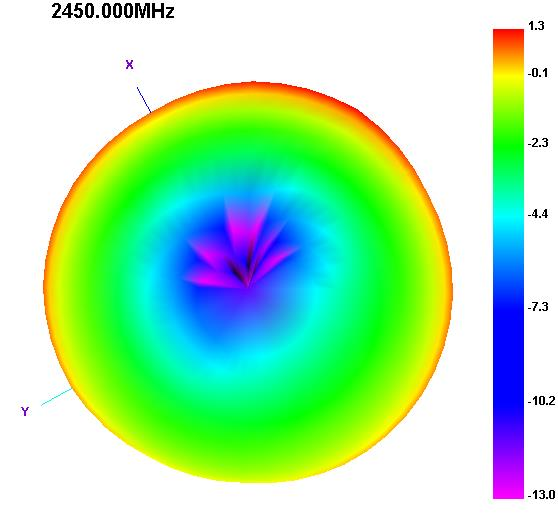

Figure 2 antenna radiation orientation diagram
Packaging dimensions of AN_W_CA_5020_M01:
Packing description: The length of the cavity at the end of the carrier tape is 150～200mm, the length of the cavity at the head of the carrier tape is 250～300mm, and the cover tape on the head is extended by 250mm.
Storage conditions: easily oxidized products, stored under vacuum for five years, please use up within 168 hours after unpacking the product or reseal the packaging!
Storage temperature and humidity: Temperature: <30℃ Humidity: <60%RH
