Maswell has launched a brand-new 5G 8X8 MIMO panel antenna model AN.8MIMO.600.8000.UB1. This antenna features a 8X8 MIMO functionality, with 8 separate RF channels formed by eight individual cables, supporting all the 5G, 4G LTE as well as 3G bands in the world. This antenna model also supports all wireless communication protocols with a frequency range from 530MHz to 8000MHz, offering a maximum gain up to 9.3dBi.
In terms of frequency compatibilities, this antenna model is compatible with all global wireless communication protocols, including LoRa, 5G cellular, WiFi 7/6E, WiFi Halow and UWB.

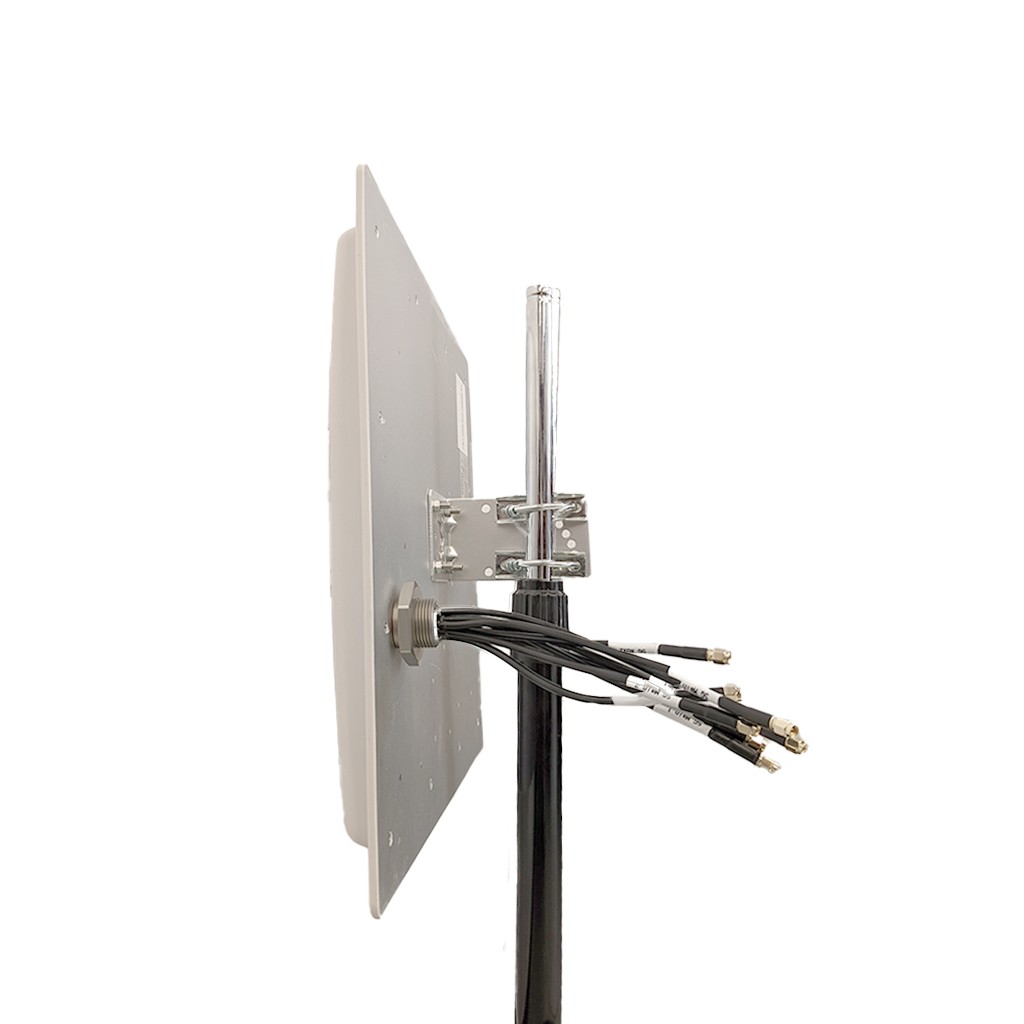

In regard to product installations, this product uses a clamp-on pole mount method via the supplied U bolt. Due to heavy weight of this 8x8 MIMO antenna series, only high quality heavy duty stainless steel poles are recommended for the antenna installations.



Product Specifications of AN.4MIMO.600.8000.UB1:


Item		Specifications
Antenna 1: 5G Main  (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	530-8000MHz
	Polarization	Linear
	Gain	9.3dBi （Max）
	V.S.W.R	<2.5
	Efficiency	>50%
Antenna 2: 5G Main  (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	530-8000MHz
	Polarization	Linear
	Gain	9.3dBi （Max）
	V.S.W.R	<2.5
	Efficiency	>50%
Antenna 3: 5G Main  (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	530-8000MHz
	Polarization	Linear
	Gain	9.3dBi （Max）
	V.S.W.R	<2.5
	Efficiency	>50%
Antenna 4: 5G Main  (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	530-8000MHz
	Polarization	Linear
	Gain	9.3dBi （Max）
	V.S.W.R	<2.5
	Efficiency	>50%
Antenna 5: 5G AUX (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	600MHz-8000MHz
	Polarization	Linear
	Gain	Up to 7.6dBi
	V.S.W.R	average 3.0
	Efficiency	>50%
Antenna 6: 5G AUX (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	600MHz-8000MHz
	Polarization	Linear
	Gain	Up to 7.6dBi
	V.S.W.R	average 3.0
	Efficiency	>50%
Antenna 7: 5G AUX (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	600MHz-8000MHz
	Polarization	Linear
	Gain	Up to 7.6dBi
	V.S.W.R	average 3.0
	Efficiency	>50%
Antenna 8: 5G AUX (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	600MHz-8000MHz
	Polarization	Linear
	Gain	Up to 7.6dBi
	V.S.W.R	average 3.0
	Efficiency	>50%
Mechanical	Dimension	444mm *444mm*65mm
	Connector Type	SMA Male, TS9 Via 4 Adapters, RP- SMA Plug Via 4 Adapters
	Cable	LMR240 equivalent 2 meters X 8
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Ingress Protection	IP65(exclude cable outlet)
	Environmentally Friendly	ROHS Compliant


Applications of AN.8MIMO.600.8000.UB1:
· Industrial control
· Industrial Routing Equipment
·5G signal boosting
·Cellular coverage
· IoT Devices
· CPE Equipment
· Vehicular applications
