Maswell has launched a new 5G 9 in1 8X8 MIMO panel antenna model AN.8MIMO.600.8000.HP. This antenna features a 8X8 MIMO functionality, with 9 separate channels formed by 9 individual cables. The 1^st cable is for the built-in high-precision GNSS antenna, which covers the bands GPS L1/L2/L5/L-Band  GLONASS G1/G2/G3, Beidou B1/B2/B3, Galileo E1/L1/E2/E5a/E5b/E6, QZSS L1/L2/L5/L-Band with a maximum gain of up to 5.5 dBiC. The rest 8 cables are assigned for the 8x8 MIMO applications, supporting all the 5G, 4G LTE as well as LoRa, WiFi 7/6E, and UWB bands in the world with a frequency range from 530MHz to 8000MHz and a maximum gain up to 9.3dBi.

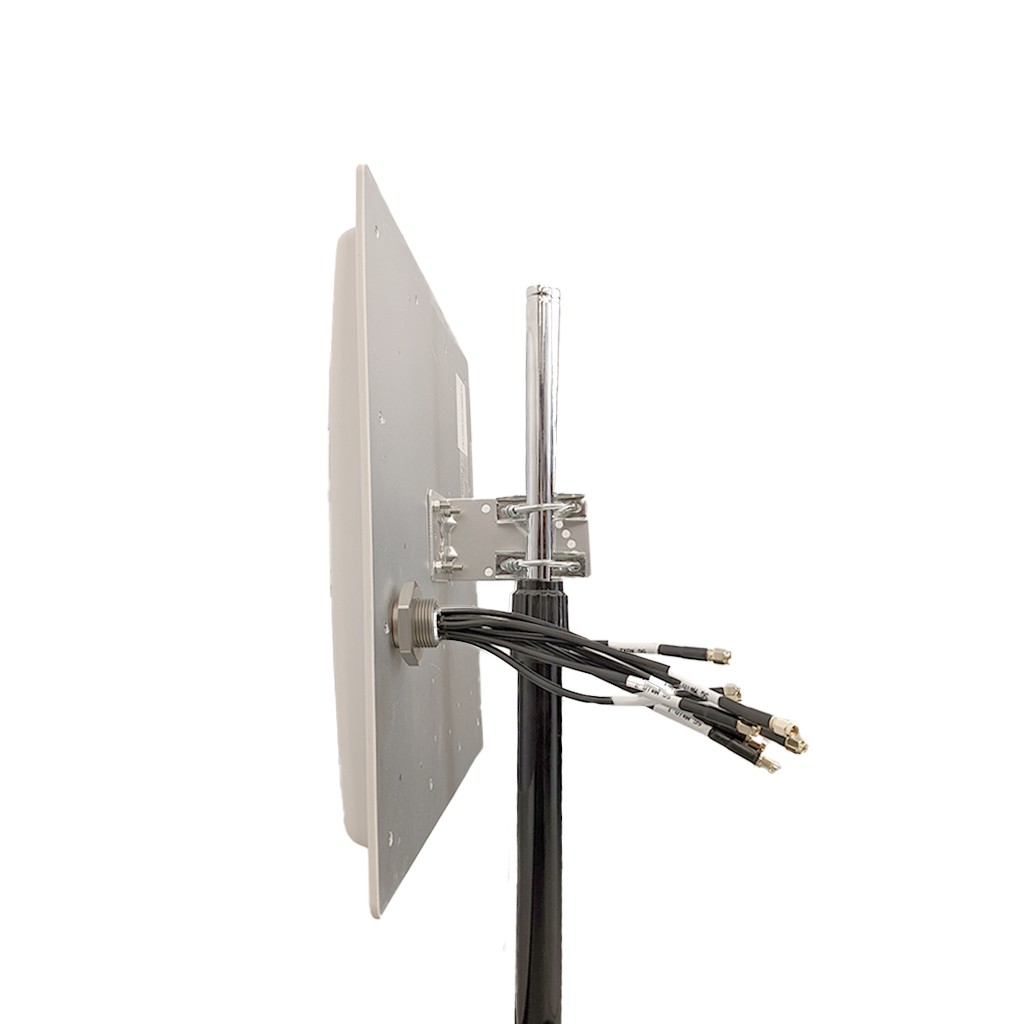

In regard to product installations, this product uses a clamp-on pole mount method via the supplied U bolt. Due to heavy weight of this 8x8 MIMO antenna series, only high quality heavy duty stainless steel poles are recommended for the antenna installations.



Product Specifications of AN.8MIMO.600.8000.HP:

Item		Specifications
GNSS Antenna	Frequency	GPS L1/L2/L5/L-Band GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5a/E5b/E6 QZSS L1/L2/L5/L-Band
	Polarization	RHCP
	Axial Ratio	≤3dB
	V.S.W.R	≤1.5
	Peak Gain	≥5.5dBi
	Impendance	50Ω
Antenna 1: 5G Main  (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	530-8000MHz
	Polarization	Linear
	Gain	9.3dBi （Max）
	V.S.W.R	<2.5
	Efficiency	>50%
Antenna 2: 5G Main  (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	530-8000MHz
	Polarization	Linear
	Gain	9.3dBi （Max）
	V.S.W.R	<2.5
	Efficiency	>50%
Antenna 3: 5G Main  (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	530-8000MHz
	Polarization	Linear
	Gain	9.3dBi （Max）
	V.S.W.R	<2.5
	Efficiency	>50%
Antenna 4: 5G Main  (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	530-8000MHz
	Polarization	Linear
	Gain	9.3dBi （Max）
	V.S.W.R	<2.5
	Efficiency	>50%
Antenna 5: 5G AUX (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	600MHz-8000MHz
	Polarization	Linear
	Gain	Up to 7.6dBi
	V.S.W.R	average 3.0
	Efficiency	>50%
Antenna 6: 5G AUX (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	600MHz-8000MHz
	Polarization	Linear
	Gain	Up to 7.6dBi
	V.S.W.R	average 3.0
	Efficiency	>50%
Antenna 7: 5G AUX (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	600MHz-8000MHz
	Polarization	Linear
	Gain	Up to 7.6dBi
	V.S.W.R	average 3.0
	Efficiency	>50%
Antenna 8: 5G AUX (5G ,4G ,WiFi7 , Bluetooth ,Zigbee, Bluetooth )	Frequency Range	600MHz-8000MHz
	Polarization	Linear
	Gain	Up to 7.6dBi
	V.S.W.R	average 3.0
	Efficiency	>50%
Mechanical	Dimension	444mm *444mm*65mm
	Connector Type	SMA Male, TS9 Via 4 Adapters, RP- SMA Plug Via 4 Adapters
	Cable	LMR240 equivalent 2 meters X 8
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Ingress Protection	IP65(exclude cable outlet)
	Environmentally Friendly	ROHS Compliant


Applications of AN.8MIMO.600.8000.HP:
·Industrial Control
·5G signal boosting
·Cellular coverage
·Industrial Routing Devices
·Industrial control
·Industrial Routing Equipment
· IoT Devices
·CPE Equipment
·Vehicular applications
