| Item | Specifications | |
| Cellular 5G/4G LTE/3G Antenna 1 |
Frequency Range | 700MHz~4900MHz |
| Polarization | Linear | |
| Gain | 2.0 dBi | |
| V.S.W.R | ≤2.0 | |
| Efficiency | >50% | |
| Cellular 5G/4G LTE/3G Antenna 2 |
Frequency Range | 700MHz~4900MHz |
| Polarizatio | Linear | |
| Gain | 2.0dBi | |
| V.S.W.R | ≤2.0 | |
| Efficiency | >50% | |

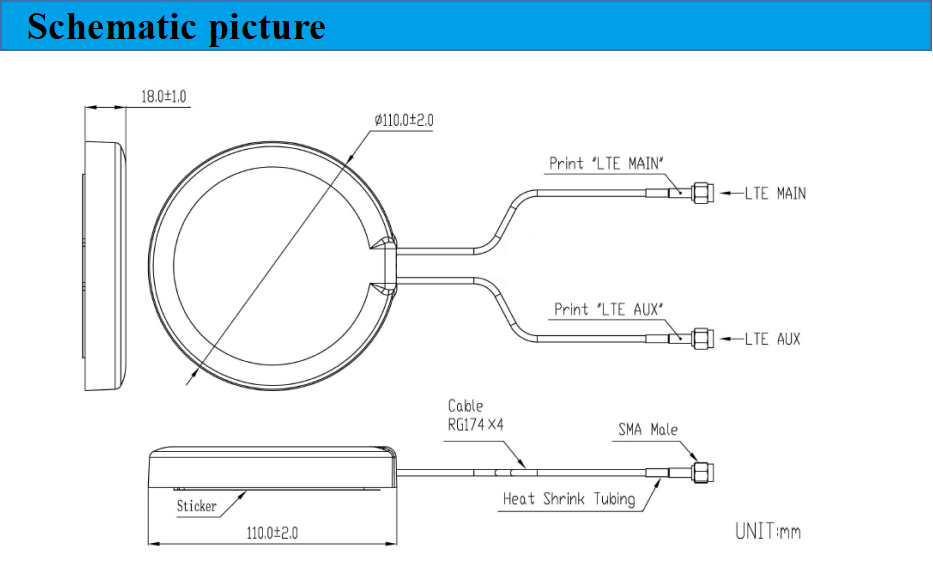

| Mechanical | Dimension | D110mm *18mm |
| Mounting Type | 3M Adhesive and Magnet | |
| Connector Type | Cellular Antenna 1-2: SMA Male | |
| Cable | LMR100 2meters | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
| Ingress Protection | IP67 | |
