High Performance GNSS Planar Antenna AN.GNSS.L1.PCB.01
AN.GNSS.L1.PCB.01
| Item | Specifications | |
| Antenna | Frequency Range | 1.56-1.602GHz |
| Polarization | RHCP | |
| Gain | 6dBic@PCB（Zenith） | |
| V.S.W.R | ＜1.5 | |
| Impendance | 50Ω | |
| Axial Ratio | 3dB（max） | |

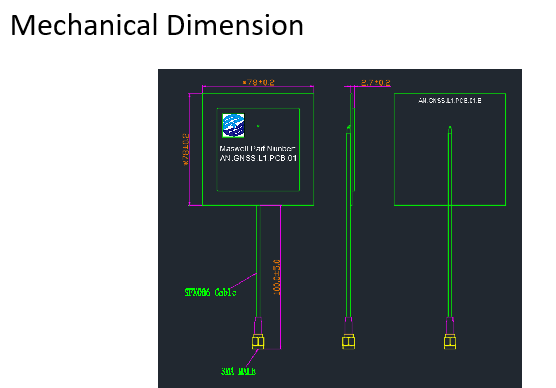

| Dimension | 80mm*80mm*5mm | |
| Mechanical | Cable | RG174 |
| Connector | SMA or others | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
