MASWELL 's two latest 5G built-in antennas, AN_Master_A04B and AN_Master_VG05A, can cover all 5G bands (2600MHz, 3500MHz, 4800MHz) worldwide, including China Mobile, China Telecom, China Unicom, ATT and Sprint. In addition, 2.4GHz and 5.8GHz are also within the frequency range of these two antennas, and they are also suitable for the future new protocol WiFi6 (6.0GHz). AN_Master_VG05A and AN_Master_A04B are paired to form the main set and diversity antennas for routers, gateways, CPE, IoT boxes. Meanwhile, the frequency range of these two antennas is 1400~6000 MHz and 600~6000 MHz respectively, and the size is 19*67.9mm and 138.71*17.55mm respectively, customers can purchase them according to their needs. For CPE and routing equipment manufacturers, MASWELL can also provide passive and active testing assistance for high volume orders.

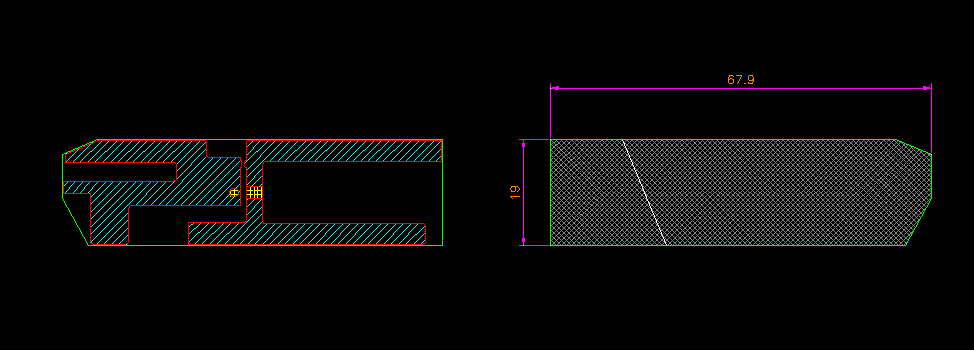

Figure 1 AN_Master_VG05A (Main)
Figure 2 AN_Master_A04B (Aux)
Product Features of AN_Master_A04B:
Frequency Range |
1400~6000MHz |
Gain |
3.5dBi(Zenith) |
Efficiency |
>50% |
Dimension |
19*67.9mm |
Cable |
SFX086 |
Cable Length |
2M typ.(Customizable) |
Connector |
SMA typ.(Customizable) |
Product Features of AN_Master_VG05A:
Frequency Range |
600~6000 MHz |
Polarization |
Linear |
Gain |
3.0dBi(Zenith) |
V.S.W.R |
<3.0 |
Impedance |
50Ω |
Efficiency |
>60% |
Connector |
SMA |
Cable |
RG178 |
Dimension |
138.71 *17.55mm |
Application of AN_Master_A04B and AN_Master_VG05A:
CPE Devices
Router
IoT Box
Consumer Side Products
