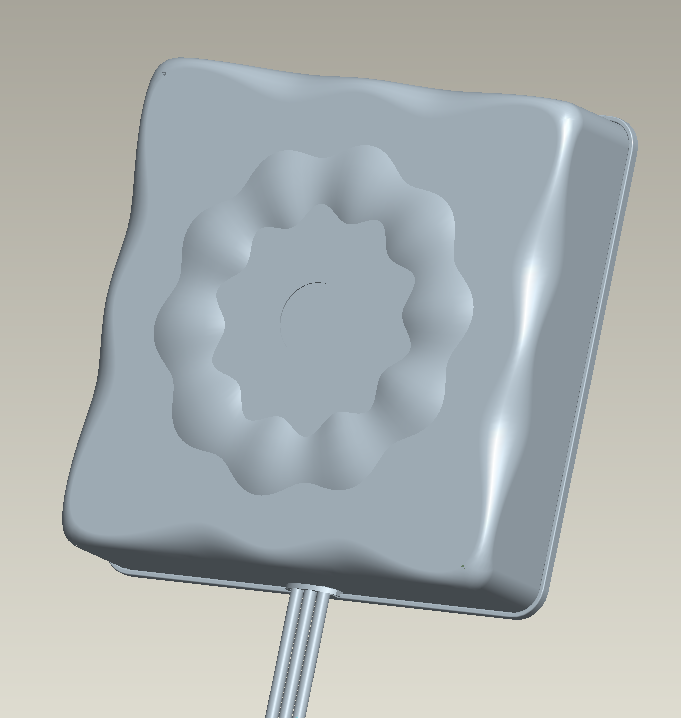

MASWELL's newly developed ultra-broadband 5G panel antenna AN_Master_001 series with independent intellectual property rights covers a frequency range of 600~6000MHz with extremely wide bandwidth and supports all 5G, 4G, 3G, GSM and dual-band WiFi bands worldwide. At the same time, our R&D staff has developed four variants of AN_Master_001-1, AN_Master_001-2, AN_Master_001-3 and AN_Master_001-4 in response to the market demand, including AN_Master_001-1 for 5G antenna, supporting single 5G/4G/WiFi; AN_Master_001-2 is a 5G/4G/Wifi+GPS combination antenna with dual cables to support 5G/4G/WiFi+GPS dual signal transmission and reception; AN_Master_001-3 is a 5G/4G/Wifi MIMO antenna with dual cables to support 5G/4G/Wifi*2 dual signal transmission and reception;AN_Master_001-4 is 5G/4G/Wifi MIMO+GPS combination antenna, equipped with three cables, support 5G/4G/Wifi *2+GPS signal *1 three way signal transmission and reception. These antennas are made of high specification imported ASA material: ASA/Sharbi HRA222F-10000, UV protection level is F1, which can adapt to various outdoor harsh environment.


Product Features of AN_Master_001-1 ：

Items		Specifications
5G antenna	Frequency Range	600-6000MHz
	Polarization	Linear
	Gain	6.0dBi
	VSWR	＜2.0
	Impedance	50Ω
Mechanical	Dimension	22cm*22cm*4.5cm
	Cable	Customizable
	Connector	SMA or others
	Mounting Method	Magnet/Adhesive/Screw
Environmental	Operating Temperature	-40℃~+85℃
	Vibration	10 to 55Hz with 1.5mm amplitude  2hours
	Environmental Friendly	ROHS Compliant

Product Features of AN_Master_001-2：

Items		Specifications
Antenna 1	Center Frequency	600-6000MHz
	Polarization	Linear
	Gain	6.0dBi
	V.S.W.R	＜2.0
	Impedance	50Ω
	Isolation	15dB
Antenna 2	Center Frequency	600-6000MHz
	Polarization	Linear
	Gain	6.0dBi
	V.S.W.R	＜2.0
	Impedance	50Ω
	Isolation	15dB
Mechanical	Dimension	22cm*22cm*4.5cm
	Cable	Customizable
	Connector	SMA or others
	Mounting Method	Magnet/Adhesive/Screw
Environmental	Operating Temperature	-40℃~+85℃
	Vibration	10 to 55Hz with 1.5mm amplitude  2hours
	Environmental Friendly	ROHS Compliant

Product Features of AN_Master_001-3：

Items		Specifications
5G Antenna	Frequency Range	600-6000MHz
	Polarization	Linear
	Gain	6.0dBi
	V.S.W.R	＜2.0
	Impedance	50Ω
	Isolation	15dB
GPS Antenna	Frequency Range	600-6000MHz
	Polarization	RHCP
	Gain	6.0dBi
	V.S.W.R	＜2.0
	Impedance	50Ω
	Isolation	15dB
Mechanical	Dimension	22cm*22cm*4.5cm
	Cable	Customizable
	Connector	SMA or others
	Mounting Method	Magnet/Adhesive/Screw
Environmental	Operating Temperature	-40℃~+85℃
	Vibration	10 to 55Hz with 1.5mm amplitude  2hours
	Environmental Friendly	ROHS Compliant


Product Features of AN_Master_001-4：

Items		Specifications
5G antenna 1	Frequency Range	600-6000MHz
	Polarization	Linear
	Gain	6.0dBi
	V.S.W.R	＜2.0
	Impedance	50Ω
	Isolation	15dB
5G Antenna 2	Frequency Range	600-6000MHz
	Polarization	Linear
	Gain	6.0dBi
	V.S.W.R	＜2.0
	Impedance	50Ω
	Isolation	15dB
GPS Antenna	Frequency Range	600-6000MHz
	Polarization	RHCP
	Gain	6.0dBi
	V.S.W.R	＜2.0
	Impedance	50Ω
	Isolation	15dB
Mechanical	Dimension	22cm*22cm*4.5cm
	Cable	Customizable
	Connector	SMA or others
	Mounting Method	Magnet/Adhesive/Screw
Environmental	Operating Temperature	-40℃~+85℃
	Vibration	10 to 55Hz with 1.5mm amplitude  2hours
	Environmental Friendly	ROHS Compliant


Applications of AN_Master_001 series ：
IoT
Consumer Side Devices
Intelligent Transportation
Indoor Signal Enhancement
Field Signal Coverage/Reception
5G CPE
5G Gateway
