MASWELL launched the 4G, GPS, WiFi outdoor 3-in-1 antenna AN_GPS_GSM_WF_056, with magnet or 3M adhesive mounting method, which can be installed on special surfaces, such as 3M adhesive for glass paste. And the product shape is square, easy to place, a single antenna can meet all wireless communication needs.

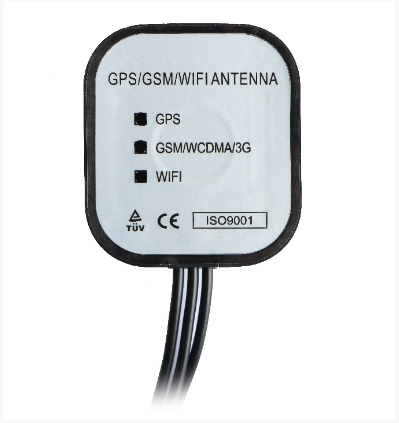

Figure 1. Front Side of the Antenna

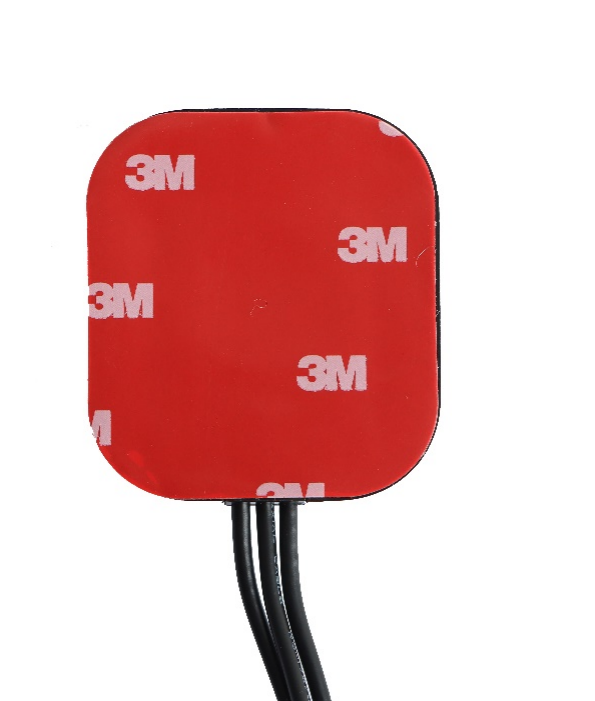

Figure 2. Back Side of the 3M Adhesive Antenna
Figure 3. Back Side of the Magnet Antenna
Features of AN_GPS_GSM_WF_056 ：
One antenna can replace several antenna varieties, which can greatly save equipment cost. Meanwhile, MASWELL's combination antenna has excellent hardness, waterproof durability and radiation characteristics, and can replace 100% of the world's top brands such as Taoglas.
4G Part： Typical Gain: 2dBi
Frequency Range：824~960MHz/1710~2170MHzz
GPS Part：Frequency Range：1575.42±3MHz
Typical Gain：2dBi
LNA Gain：28±2dB
Input Voltage：2.2~5V DC
Current：<15mA
WiFi Part：Typical Gain：2dBi
Frequency Range：2400~2483.5MHz
Applications of AN_GPS_GSM_WF_056：
Vehicles
Instrumentation
IoT
Industrial control
