Maswell 5G mm wave horn antenna

Release time：2021/12/16

Maswelll has launched a new 5G millimeter wave horn antenna AN.Horn.5G.mmwave.26.40.WR28, covering the frequency range of 26.5 ~ 40GHz, with a typical gain of 12dBi. The WR28 standard waveguide port is used for the feed, which is easy to install. Maswell is able to manufacture this 5G mmwave horn antenna in a cost-effective manner.

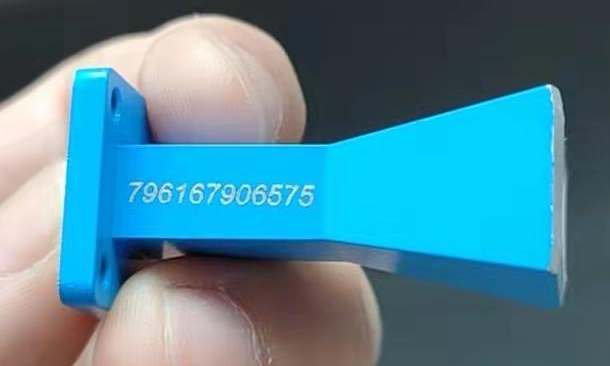

Figure 1. Product Diagram

Product Parameters of AN.Horn.5G. mmwave.26.40. WR28:

Item		Specifications
Antenna	Center Frequency	26.5~40GHz
	Polarization	Linear
	Gain	12dBi typical
	V.S.W.R	<1.2
Mechanical	Dimension	21.8mm19.1mm39.3mm
	Cable	N/A
	Connector	WR 28 flange
	Mounting Method	Screw
Environmental	Environmentally Friendly	ROHS Compliant

Application of AN.Horn.5G. mmwave.26.40. WR28:

IoT devices
Radar system
5G CPE
Image-forming system
Microwave Transmission
