| Item | Specifications | |
| Antenna | Frequency Range | 600-960/1710-6000MHz |
| Polarization | Linear | |

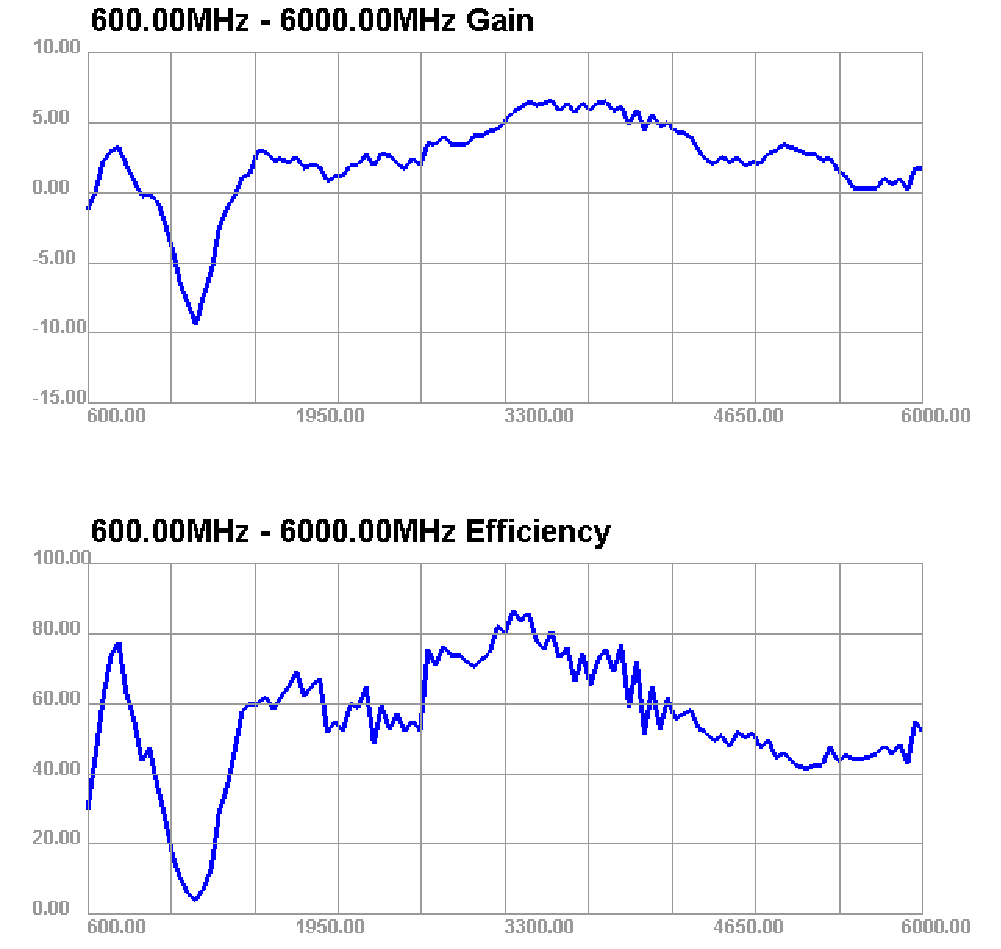

| Gain | 6dBi Maximum | |

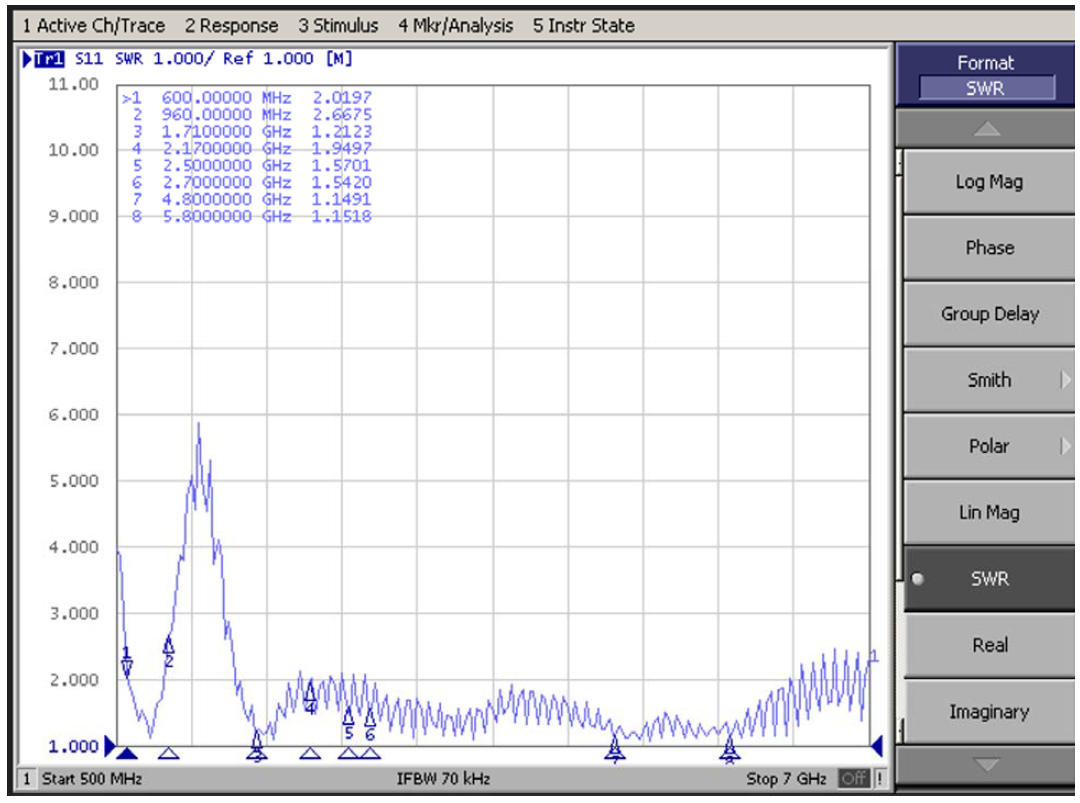

| V.S.W.R | ＜2 | |
| Impendance | 50Ω | |
| Dimension | 71 *48 *28.3mm | |
| Mechanical | Cable | RG174（1.5M or customised) |
| Connector | SMA or others | |
| Radome Material | ABS | |
| Mounting Method | Magnet mount +Screw Hole | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% | |
| Waterproof | IP65 | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
| UV Stabilized | YES | |
