Maswell launched a new series of ceramic chip antenna products, WiFi / Bluetooth chip antenna AN_W_CA_3216_P01, covering the frequency range of 2400~2500MHz, gain 2dBi. The external size, test and matching circuits uses 3216 PCB foot print, small and meet the SMD sheet design.
Figure 1. Product Diagram
Product Parameters of AN_W_CA_3216_P01:
| Item |
Specifications |
| After Matching |
2400~2500MHz |
| Band Width |
100MHz typ. |
| Peak Gain |
2dBi |
| V.S.W.R |
≤ 2.0 |
| Polarization |
Linear |
| Azimuth Beam Width |
Omni-directional |
| Impedance |
50Ω |
Application of AN_W_CA_3216_P01:
- Wearable Equipment
- Industrial Computer
- IoT
- Precision Instrument
- AR / VR s Equipment
- Development board

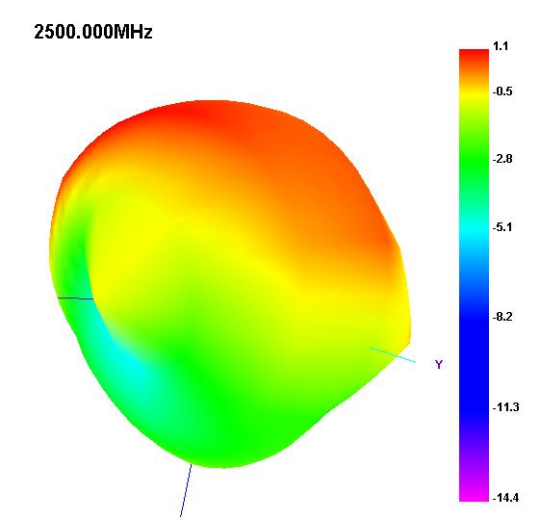

Figure 2 antenna radiation orientation diagram
Packaging dimensions of AN_W_CA_3216_P01:
Packing description: The length of the cavity at the end of the carrier tape is 150～200mm, the length of the cavity at the head of the carrier tape is 250～300mm, and the cover tape on the head is extended by 250mm.
Storage conditions: easily oxidized products, stored under vacuum for five years, please use up within 168 hours after unpacking the product or reseal the packaging!
Storage temperature and humidity: Temperature: <30℃ Humidity: <60%RH
